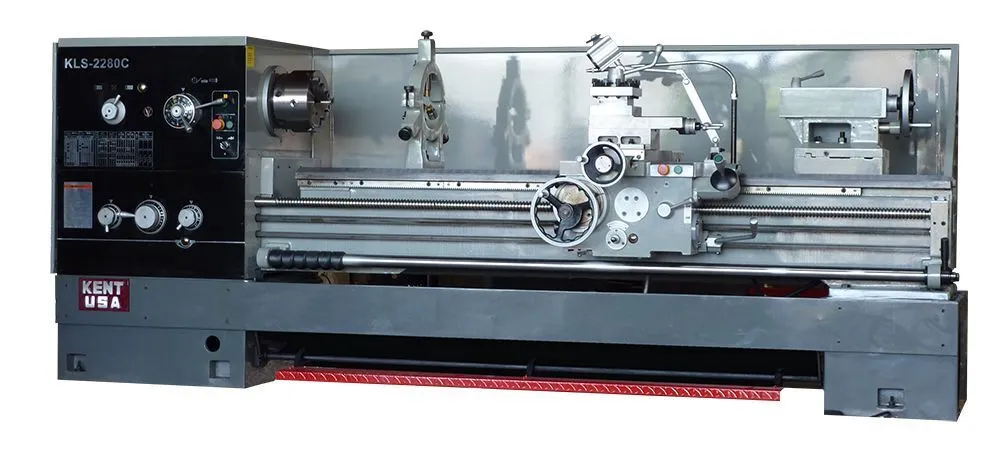

Manual Economy Lathes
Kent USA’s value-driven Manual Economy Lathes put the same Kent USA reliability and precision within reach. Our economy lathes offer the same quality engineering and reliability for your regular day-to-day turning. Our engine lathes are offered in work capacities of 13” x 40” to 26” x 120”, spindle bore sizes of 1.5” to 4.12”, and spindle motors of up to 10 HP.
- 10 HP main spindle motor, 12 speeds
- D1-8 camlock, 4.1” spindle bore
- Hardened and ground gears and bedways
- Jog button, 4-way rapid traverse
- Mechanical clutch style headstock
- Inch dials and leadscrews
- Centralized lube system in headstock
- Safety Foot brake
| Swing | 22" | 558.8 mm |
| Centers | 80" | 2,032 mm |
| Spindle Bore | 4.12" | 104.65 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Swing Over Cross Slide | 12.5" | 317.5 mm |
