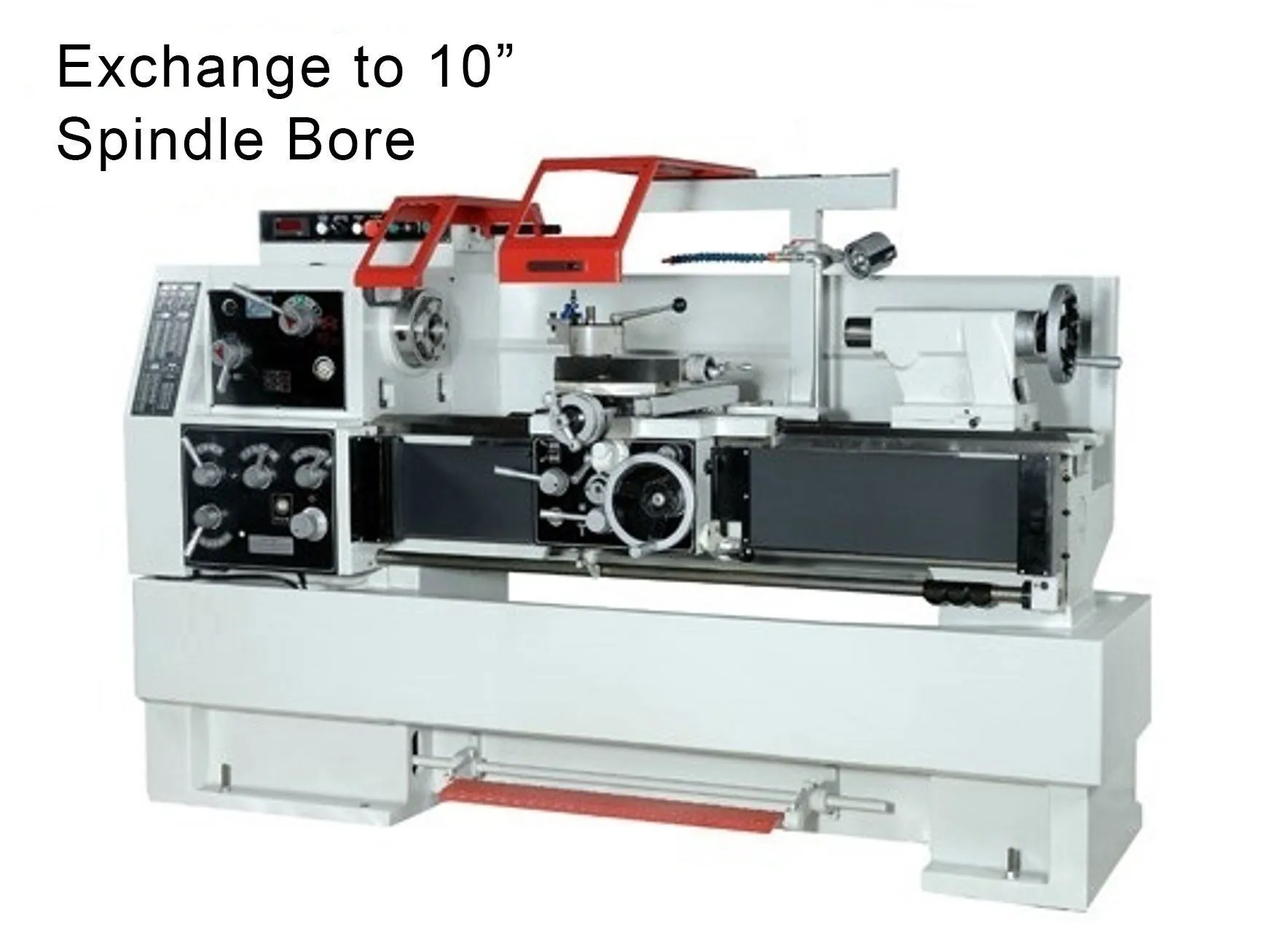

NEW KENT BHT-2040V

Manual Big Bore Lathes
Kent USA’s line of Big Bore Lathes or Oil Country Lathes has the mass, power, and precision to machine heavy-duty jobs. Ideal for turning large workpieces in the oil field industry, these powerful machines can easily accommodate large diameter turning and threading applications. The large swing can be applied to big steel rollers, large diameter flanges, long shafts of ships, etc. These large bore lathes are offered with capacities between 55″ x 80″ to 100″ x 480″ and up to 21″ of spindle bore. Double chuck lathes are also available. All of our large bore lathes are backed by our 15-month warranty.

Anatomy of Our Big Bore Lathes
All of our large oil country lathes are equipped with a single piece bed and base design for extra rigidity. They are also equipped with a 3rd rail support for enhanced cutting force. In addition, the locating pin-locking style 4-way tool post allows for easy swiveling but also ensures the rigidity in cutting. Auto lubricating system for slide ways also comes standard for extra longevity and precision. Kent USA big bore lathes may also be equipped with double chucks at both sides of the headstock. In addition, rotary quill option on tailstocks is also available for better workpiece clamping.

- 10 HP Spindle Motor, Speed: 50-400 rpm.
- Precision Spindle with 3 Point Support
- A2-15, 10” (250mm) Spindle Bore
- Hardened and ground spindle gears and shafts; hardened and ground bedways
- Solid Full Length Casting Base; Full-length Safety Foot Brake
- Spindle Jog Button Control
- One-shot/Auto Lubrication for Apron, Carriage, and Bed Ways
