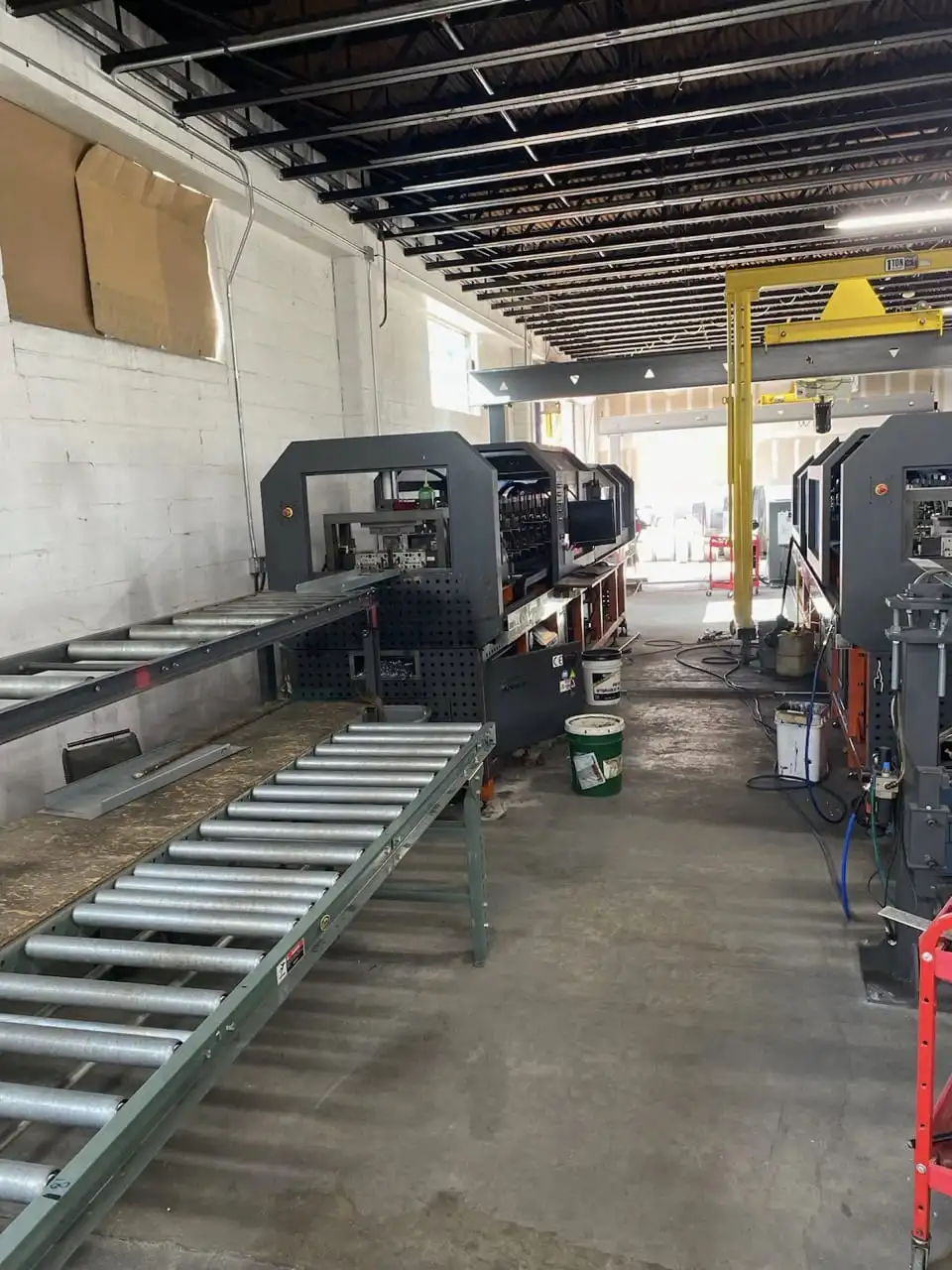

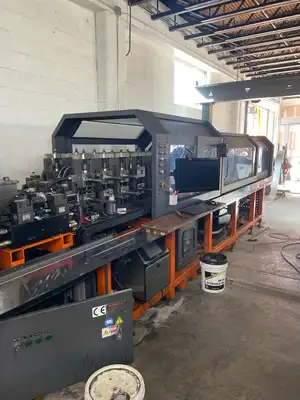

USED 2017 PINNACLE X3

The 2017 Pinnacle LGS X3 is a CNC light gauge steel framing machine designed for high-efficiency, automated LGS framing and truss production. Capable of roll forming six programmable profiles across a gauge range of 26–16 gauge (0.024″–0.063″), this used light gauge steel framing system is a strong fit for modular construction, prefab framing, and cold-formed steel manufacturing operations looking to bring production in-house. Featuring a fully integrated inkjet printer, 9 roll forming stations, and a powered de-coiler rated at over 6,600 lbs, the Pinnacle X3 delivers labeled, precision-cut framing members with minimal operator input.
Specifications:
Make: Pinnacle
Model: LGS X3
Year: 2017
Number of Profiles: 6
Profile Size (Web): 2.48″, 3.50″, 5.91″
Profile Size (Flange): 1.61″
Profile Size (Lip): 0.39″
Gauge Range: 0.024″ – 0.063″ (26–16 Gauge)
Gauge Adjustment: Semi-Automatic Dial

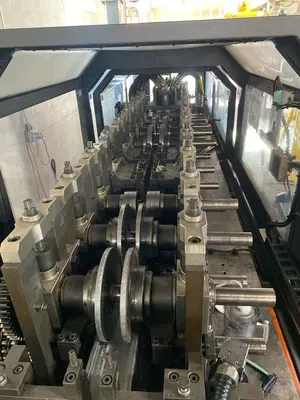

Roll Forming Stations: 9
Frame & Truss Tool Punches: 6
Length: 143.3″
Width: 29.8″
Height: 61.9″
Weight: 5,949 lbs
Power: 380 VAC / 30 KVA
Equipped With:
Fully Integrated Inkjet Printer

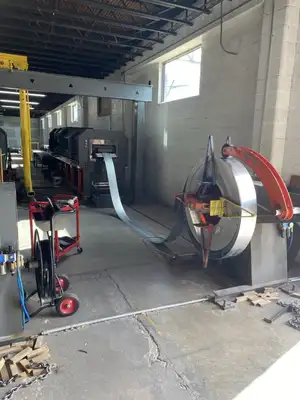

Powered De-Coiler (6,614 lb Capacity)
All specifications are assumed to be correct but must be verified by the purchasing entity. All machinery is sold as-is, where-is, with no warranties expressed or implied. Buyers are encouraged to inspect prior to purchase.
