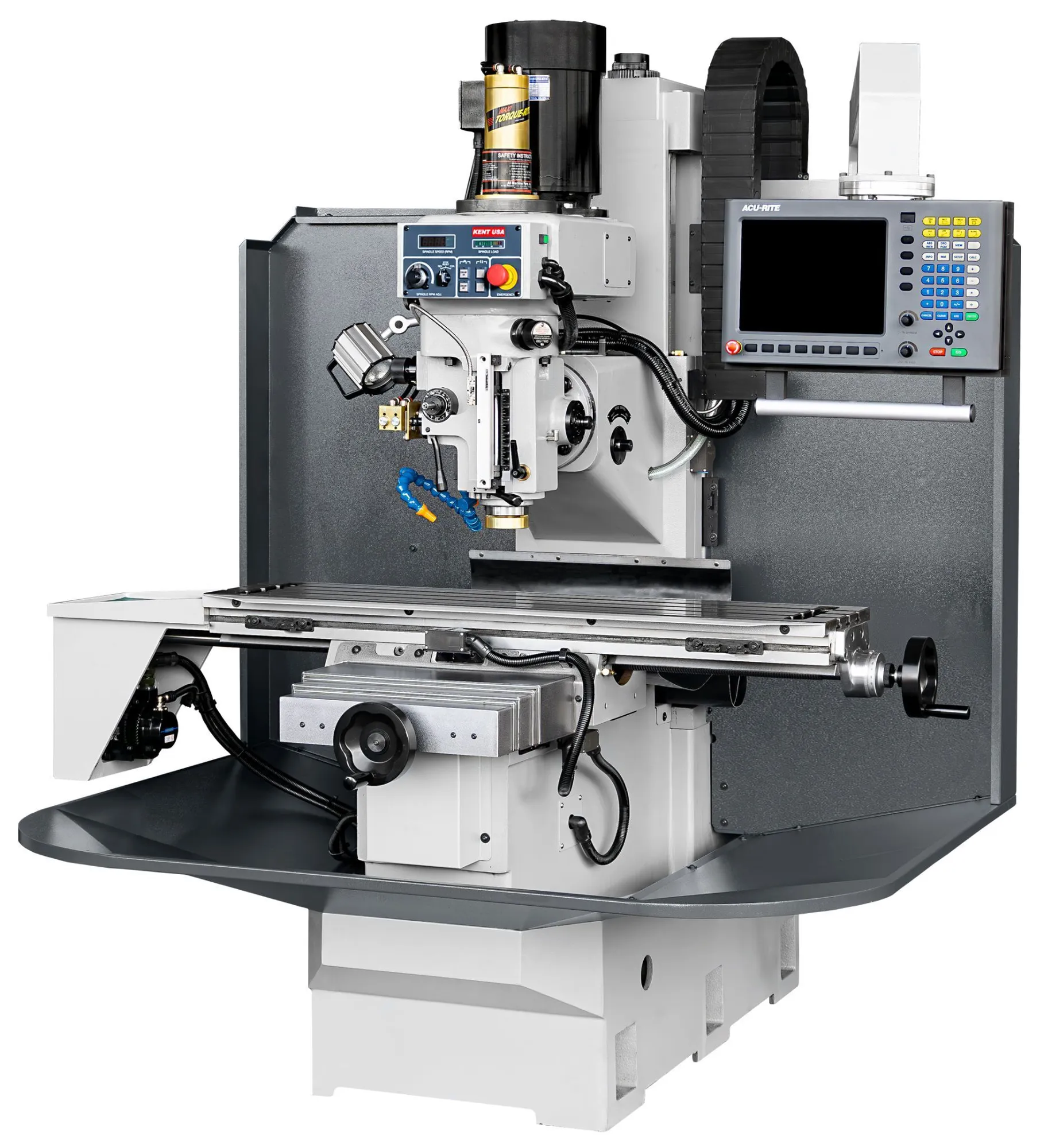

NEW KENT TW-32QI

CNC Bed Mills & Vertical Machining Centers
Kent USA CNC Bed Mills & Vertical Machining Centers offer more rigidity and travel. These are geared towards facilities that require high-production capacity with high speed and accuracy. In addition, this line of milling machines is perfect for workpieces that require more Z-axis clearance and higher payload.

These CNC bed mills are the new industry standard for ease of use, machining flexibility, and reliable performance. They are well-suited for tool rooms and job shops, from prototyping or one-offs to small and medium production runs. In addition, they are engineered for virtually every industry application from R&D vertical machining to production shops. Bed milling machines are the perfect choice if you need to take heavy cuts such as making mold bases. Kent USA box way bed mills come with table travels of 32″ x 18″ x 18″ to 78″ x 35″ x 28″.

- 7.5 HP spindle motor
- Programmable spindle rpm control
- Spindle rpm over-ride knob on control
- 60-6000 RPM without manual gear changes
- NST-40 or CAT-40 taper spindle available
- Enhanced flux-vector inverter on spindle drive
- Metal hand wheels on X-axis and Y-axis
- Full automatic CNC and manual/DRO mode capability
- Solid boxed ways on column and saddle ways
- Metal telescoping way cover on front Y-axis
- Auto lubrication unit with metered check valves
- Flood coolant with splash guard and chip pan
- Built-in coolant reservoir in machine base
- Overhead arm mounting of CNC control
- Halogen work light built-in for convenience
- DRO mode for manual machining capability
- Large 1.25” diameter precision ground ball screws
- Manual quill capability for greater flexibility
