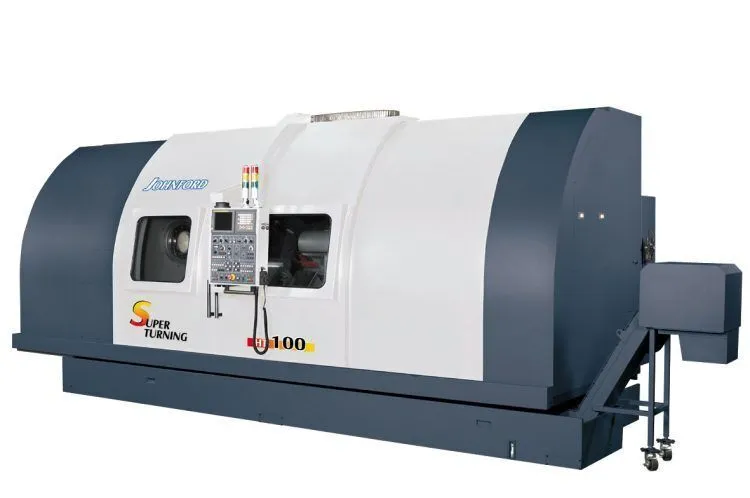

NEW JOHNFORD HT-100

Johnford HT Series of twin-turret horizontal slant bed turning centers feature a one piece, 45˚ slant bed torque tube design. The torque tube, or hole cast through the center of the slant bed, maximizes rigidity and dissipates heat. For optimum strength and accuracy, the machines are cast from rigid Meehanite iron.

Swing over the bed for the seven-machine series ranges from 22.8″ (579 mm) to 27.95″ (710 mm), with 39.4″ (1000 mm) optional. Swings over the cross slide are 13″ (330 mm) and 23.6″ (600 mm), with 31.5″ (800 mm) optional. Distance between centers begins at 21.7” (551 mm) and is 120″ (3048 mm) on the largest machine.

Twin 12-tool turrets are standard on all machines, and C-axis, Y-axis, and sub-spindle are optional.
A wide variety of available spindle types are available. Depending on the machine model, the spindle has 25-60 hp and a 2 or 4 speed gearbox. Spindle structures mounted with double row roller bearings in conjunction with angular contact ball bearings for high rigidity and accuracy. The spindle quill inner and outer linings are precision ground for fit with the spindle, thus ensuring concentricity and accuracy.
