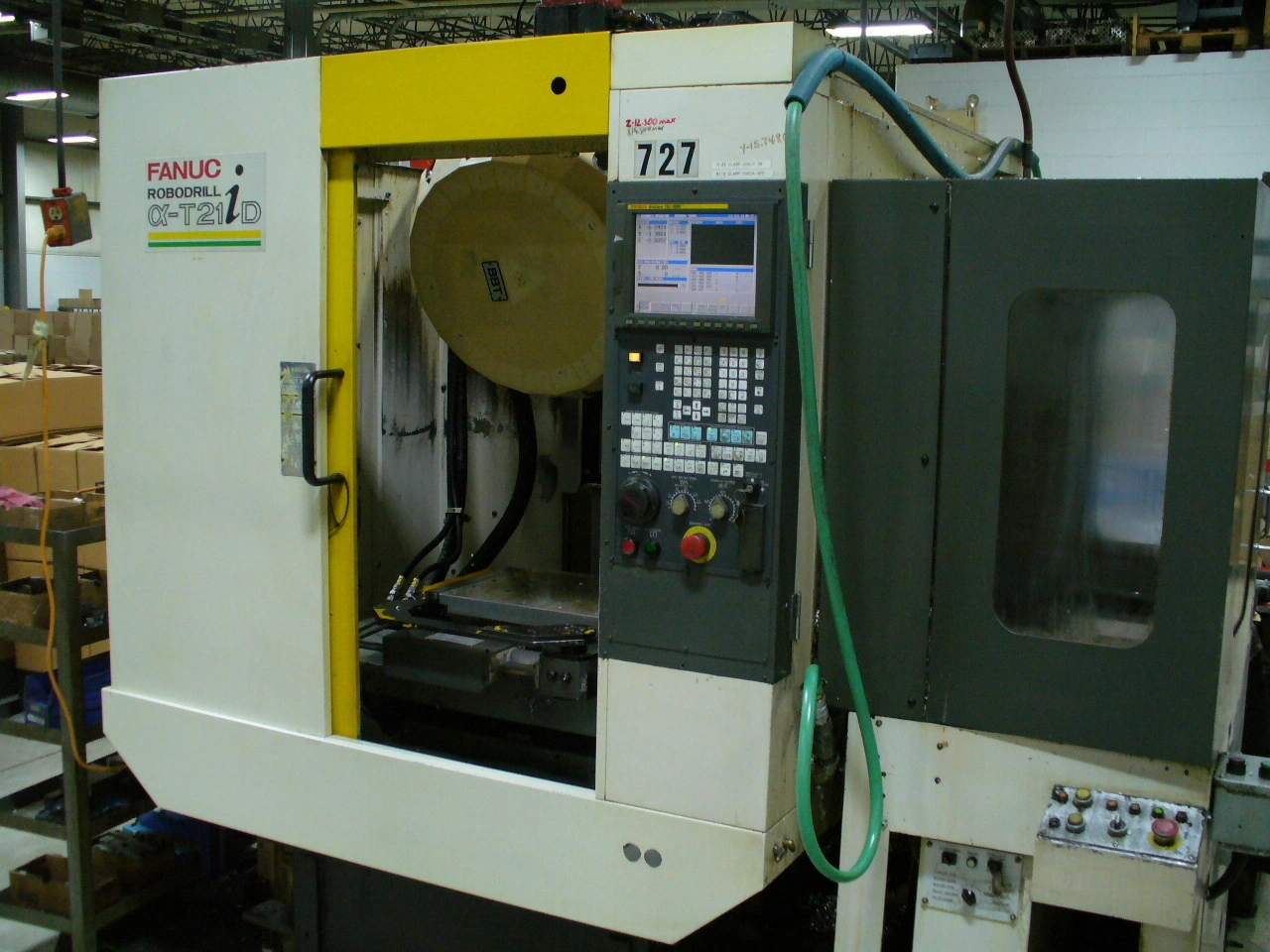

2004 Fanuc RoboDrill Alpha T21iD with Fanuc 16iMB Control, 21 ATC, Kawata Tec SP3950B 2-Station Pallet Changer, 10,000 RPM Spindle
| X | 19.68" | 499.87 mm |
| Y | 0" | 0 mm |
| Z | 13" | 330.2 mm |
| Power | 7.4 hp | 5.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT-30 | BT-30 |
| Control | CNC (Fanuc 16iMB) | CNC (Fanuc 16iMB) |
| Dimensions | 64" x 80" x 106" | 64" x 80" x 106" |
| Weight | 4,400 LBS | 4,400 LBS |
Table Size.......................25.59" x 15.74"
Table Capacity...................550 LBS
Spindle To Table Distance........5.91" - 18.89"
X-Axis Travel....................19.68"
Y-Axis Travel....................15.74"
Z-Axis Travel....................13"
Spindle Drive....................7.4 / 5 HP
Spindle Taper....................BT-30
Spindle Speeds...................10,000 RPM
Rapid Traverse Rate (X/Y/Z)......2,125 IPM
Tool Changer Capacity............21 Stations
Max Tool Length..................9.84"
Tool Change Time.................1.8 seconds Cut to Cut
Max Tool weight..................6.6 LBS
Main Unit Dimensions.............64.00" x 80.00" x 106.00"
Main Unit Approx Weight..........4,400.00 lbs
Fanuc 16iMB CNC Control
10,000 RPM Spindle
Kawata Tec SP3950B 2-Station Pallet Changer
21 Station ATC
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
