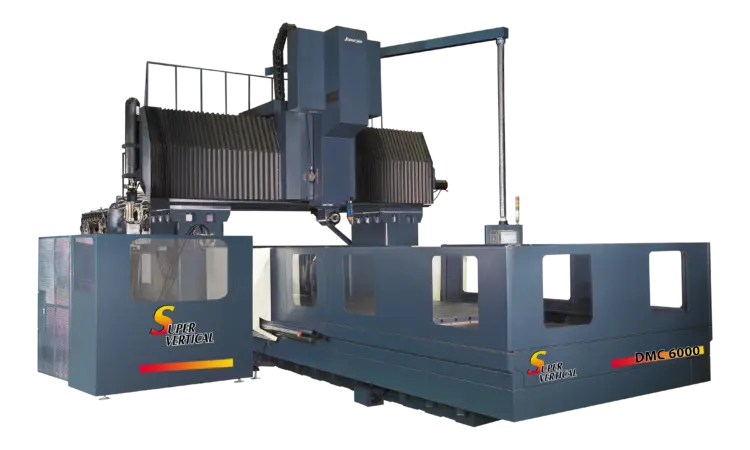

Johnford’s DMC-4000, DMC-5000, and DMC-6000 CNC bridge mills are built for the heaviest, most demanding large-part machining applications. These massive machines deliver exceptional rigidity and precision thanks to one-piece Meehanite cast iron bases and Finite Element Analysis (FEA) optimized designs that resist cutting forces across the entire work envelope. The result: accurate, stable machining of very large and complex parts, shift after shift.
| X | 196" | 4,978.4 mm |
| Y | 196" | 4,978.4 mm |
| Z | 48" | 1,219.2 mm |
| # Axis | 3 | 3 |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Table-W | 86.6" | 2,199.6 mm |
| Table-L | 204.7" | 5,199.4 mm |
| Taper | BT-50/CAT-50 (HSK-100A opt.) | BT-50/CAT-50 (HSK-100A opt.) |
| Control | CNC (Oi-MF Plus (31i-MB Plus opt.)) | CNC (Oi-MF Plus (31i-MB Plus opt.)) |
