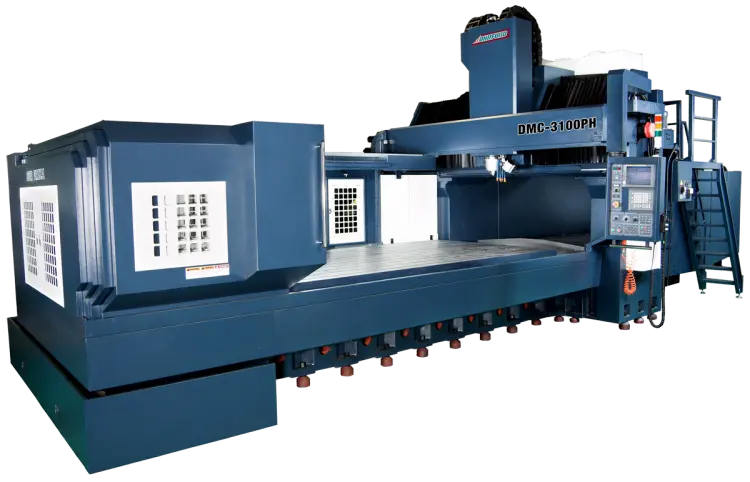

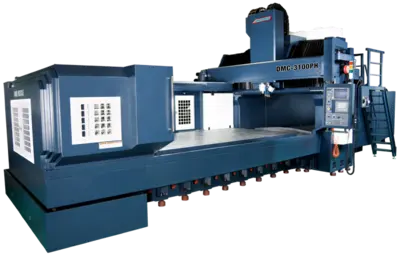

Johnford’s PH Series CNC bridge mills deliver exceptional capacity and precision for large-part machining with an extended Y-axis travel of 2300 mm (90.5″). Built to handle the demands of heavy-duty cutting while maintaining accuracy, the PH Series features an extra-heavy, one-piece Meehanite cast structure with 650 mm (25.6″) widely spaced box ways and 880 mm (34.6″) roller linear guideway spacing for outstanding rigidity. This robust design ensures stable, repeatable performance in demanding industrial applications.
| X | 161.4" | 4,099.6 mm |
| Y | 90.5" | 2,298.7 mm |
| Z | 42" | 1,066.8 mm |
| # Axis | 3 | 3 |
| Power | 56 hp | 41.8 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Table-W | 80.7" | 2,049.8 mm |
| Table-L | 165.3" | 4,198.6 mm |
| Taper | BT-50 / CAT 50 (HSK-100A opt.) | BT-50 / CAT 50 (HSK-100A opt.) |
| Control | CNC (Oi-MF Plus (31i-MB Plus opt.)) | CNC (Oi-MF Plus (31i-MB Plus opt.)) |
