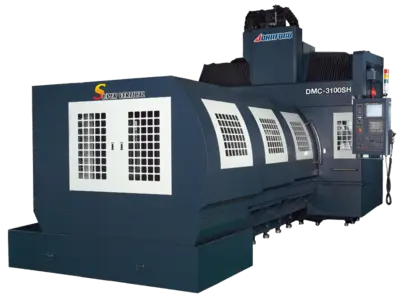

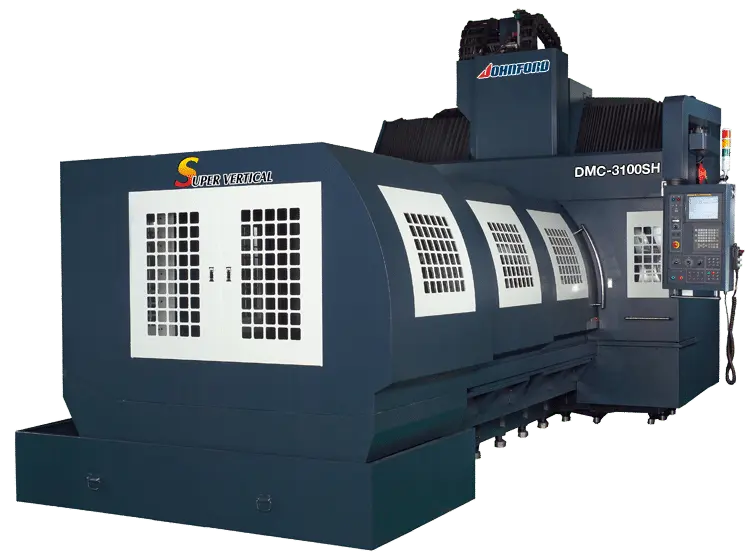

The Johnford SH CNC bridge mill series delivers unmatched performance and rigidity in a remarkably space-efficient design. With extended Y-axis travel of 1778 mm (70″), the SH series is engineered to handle demanding heavy machining applications while minimizing floor space requirements. Built with a massive single-piece Meehanite cast structure, these machines absorb cutting stresses with minimal deflection for exceptional accuracy — even in the most challenging cuts.
- Unique one-piece bridge and columns casting
- Full-length Meehanite cast iron base for 100% table support
- Hardened and ground box ways in both Y and Z axes for maximum rigidity
- 2-speed gearbox spindle drive for high torque cutting
- Hydraulic Z-axis counterbalance for smooth motion control
- Easy-access, high-speed automatic tool changer (ATC)
- 100% full enclosure to contain chips and coolant
- Complete chip removal system with two screw-type conveyors plus one belt conveyor
- Superior ergonomics with just 30.7″ table height from the floor
| X | 122" | 3,098.8 mm |
| Y | 70" | 1,778 mm |
| Z | 42" | 1,066.8 mm |
| # Axis | 3 | 3 |
| Power | 56 hp | 41.8 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Table-W | 59" | 1,498.6 mm |
| Table-L | 126" | 3,200.4 mm |
| Taper | BT-50 / CAT-50 (HSK-100A opt.) | BT-50 / CAT-50 (HSK-100A opt.) |
| Control | CNC (Oi-MF Plus (31i-MB Plus opt.)) | CNC (Oi-MF Plus (31i-MB Plus opt.)) |
