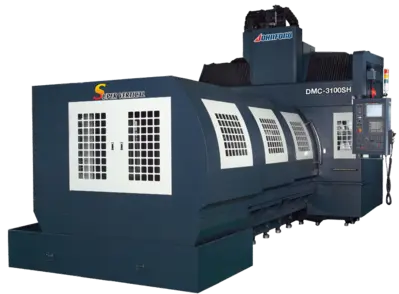

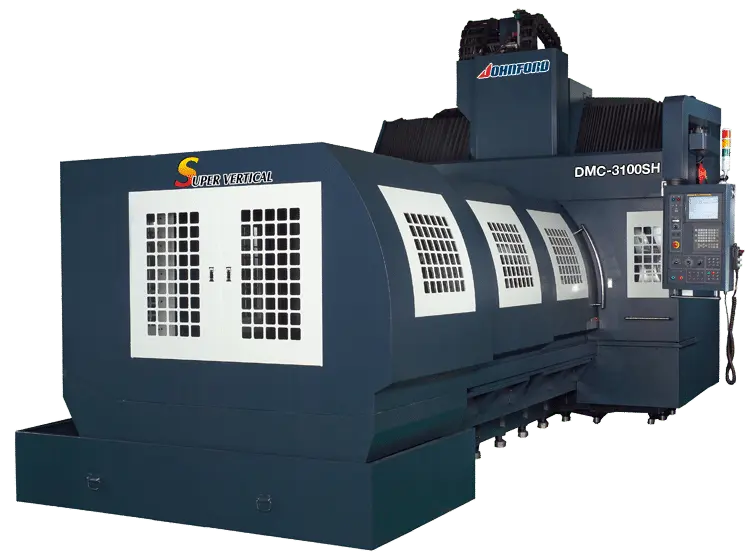

The Johnford SH CNC bridge mill series delivers unmatched performance and rigidity in a remarkably space-efficient design. With extended Y-axis travel of 1778 mm (70″), the SH series is engineered to handle demanding heavy machining applications while minimizing floor space requirements. Built with a massive single-piece Meehanite cast structure, these machines absorb cutting stresses with minimal deflection for exceptional accuracy — even in the most challenging cuts.
| X | 82.7" | 2,100.6 mm |
| Y | 70" | 1,778 mm |
| Z | 31.5" | 800.1 mm |
| # Axis | 3 | 3 |
| Power | 56 hp | 41.8 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Table-W | 59" | 1,498.6 mm |
| Table-L | 86.6" | 2,199.6 mm |
| Taper | BT-50 / CAT-50 (HSK-100A opt.) | BT-50 / CAT-50 (HSK-100A opt.) |
| Control | CNC (Oi-MF Plus (31i-MB Plus opt.)) | CNC (Oi-MF Plus (31i-MB Plus opt.)) |
