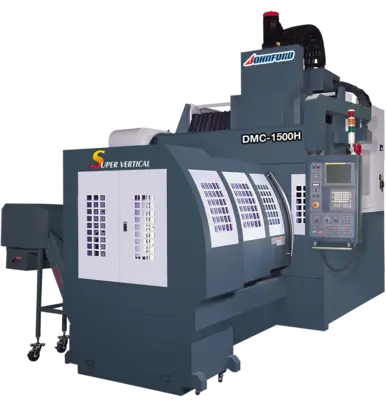

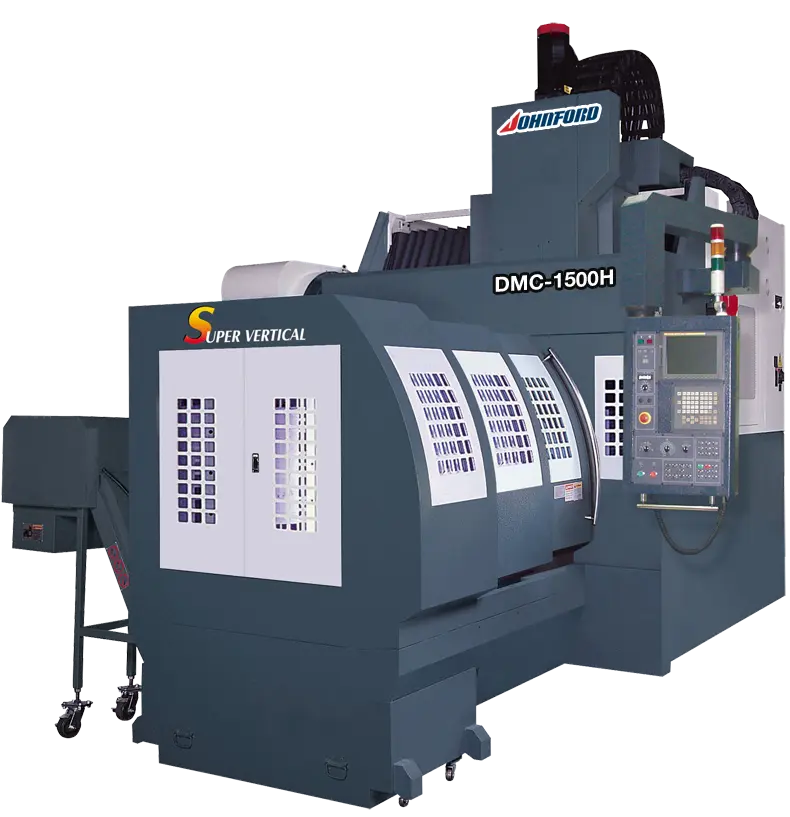

The DMC-900 through DMC-1500 series features full enclosures that keep coolant and chips contained while providing excellent access. Swing-open side doors and a movable operator panel allow easy tool changes and machine setup, while the table height of just 30.7″ ensures comfortable part loading from the floor. Available spindles include 50 taper, 40 taper, HSK-100A, and HSK-63A to suit heavy-duty cutting or high-speed machining requirements, with optional gearbox-driven, direct-drive, or integral-motor configurations for maximum flexibility.
Key Features:
- Unique one-piece bridge and columns casting
- Full-length Meehanite cast iron base for 100% table support
- Hardened and ground box ways in both Y and Z axes for maximum rigidity
- 2-speed gearbox spindle drive for high torque cutting
- Hydraulic Z-axis counterbalance for smooth motion control
- Easy-access, high-speed automatic tool changer (ATC)
- 100% full enclosure to contain chips and coolant
- Complete chip removal system with two screw-type conveyors plus one belt conveyor
- Superior ergonomics with just 30.7″ table height from the floor
| X | 59.1" | 1,501.1 mm |
| Y | 35.4" | 899.16 mm |
| Z | 30" | 762 mm |
| # Axis | 3 | 3 |
| Power | 31 hp | 23.1 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 32 | 32 |
| Table-W | 33.5" | 850.9 mm |
| Table-L | 63" | 1,600.2 mm |
| Taper | BT-40 / CAT-40 (HSK-A63 opt.) | BT-40 / CAT-40 (HSK-A63 opt.) |
| Control | CNC (Oi-MF Plus (31i-MB Plus opt.)) | CNC (Oi-MF Plus (31i-MB Plus opt.)) |
