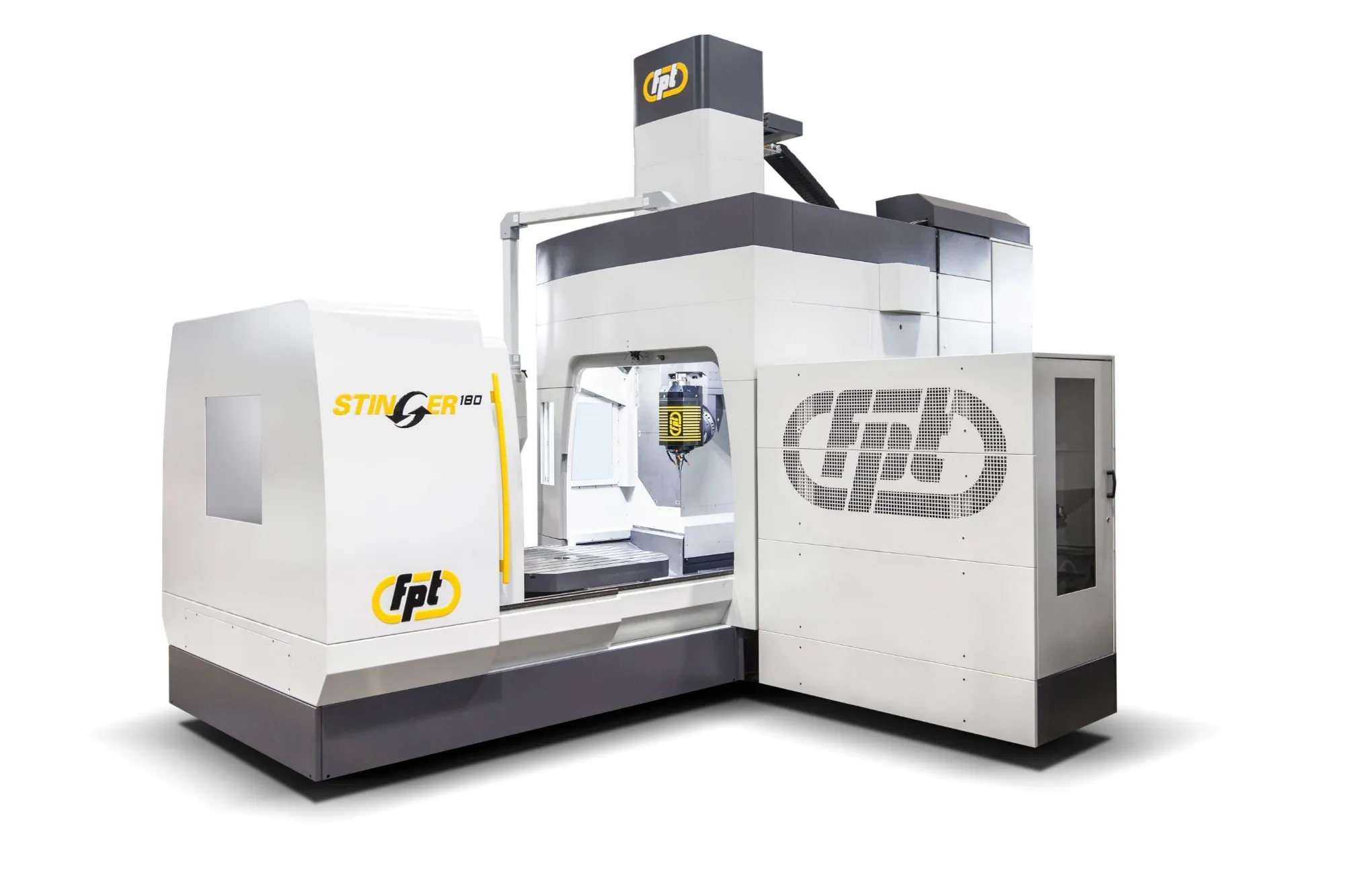

The FPT Stinger - 180

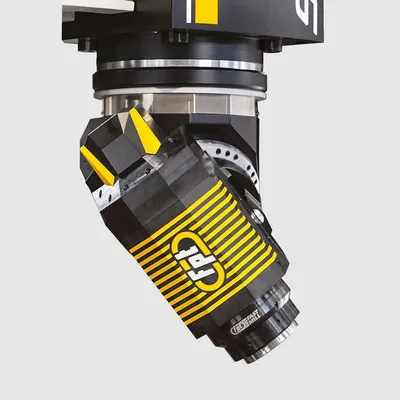

- The rotation of both the table and the head is continuous and obtained using Direct Drive motors that ensure high rotation and positioning speeds.
- The absence of mechanical rotation elements reduces the need for maintenance and grants high reliability and accuracy as well.

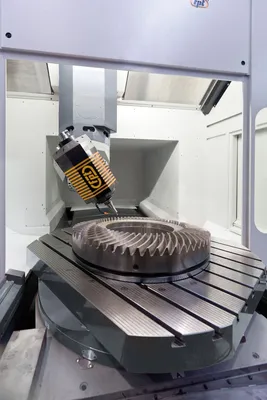

- The rotary axes can be used as continuous positioning axes or as interpolated axes for 5-axis working.
| X | 55" | 1,397 mm |
| Y | 68.9" | 1,750.1 mm |
| Z | 31.5" | 800.1 mm |
| # Axis | 5 | 5 |
| Power | 44.2 hp | 33 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| Table-W | 39.4" | 1,000.8 mm |
| Table-L | 47.2" | 1,198.9 mm |
| Taper | ISO50, HSK-A63, HSKA100 | ISO50, HSK-A63, HSKA100 |
| Control | CNC (FANUC - HEIDENHAIN - SIEMENS) | CNC (FANUC - HEIDENHAIN - SIEMENS) |
