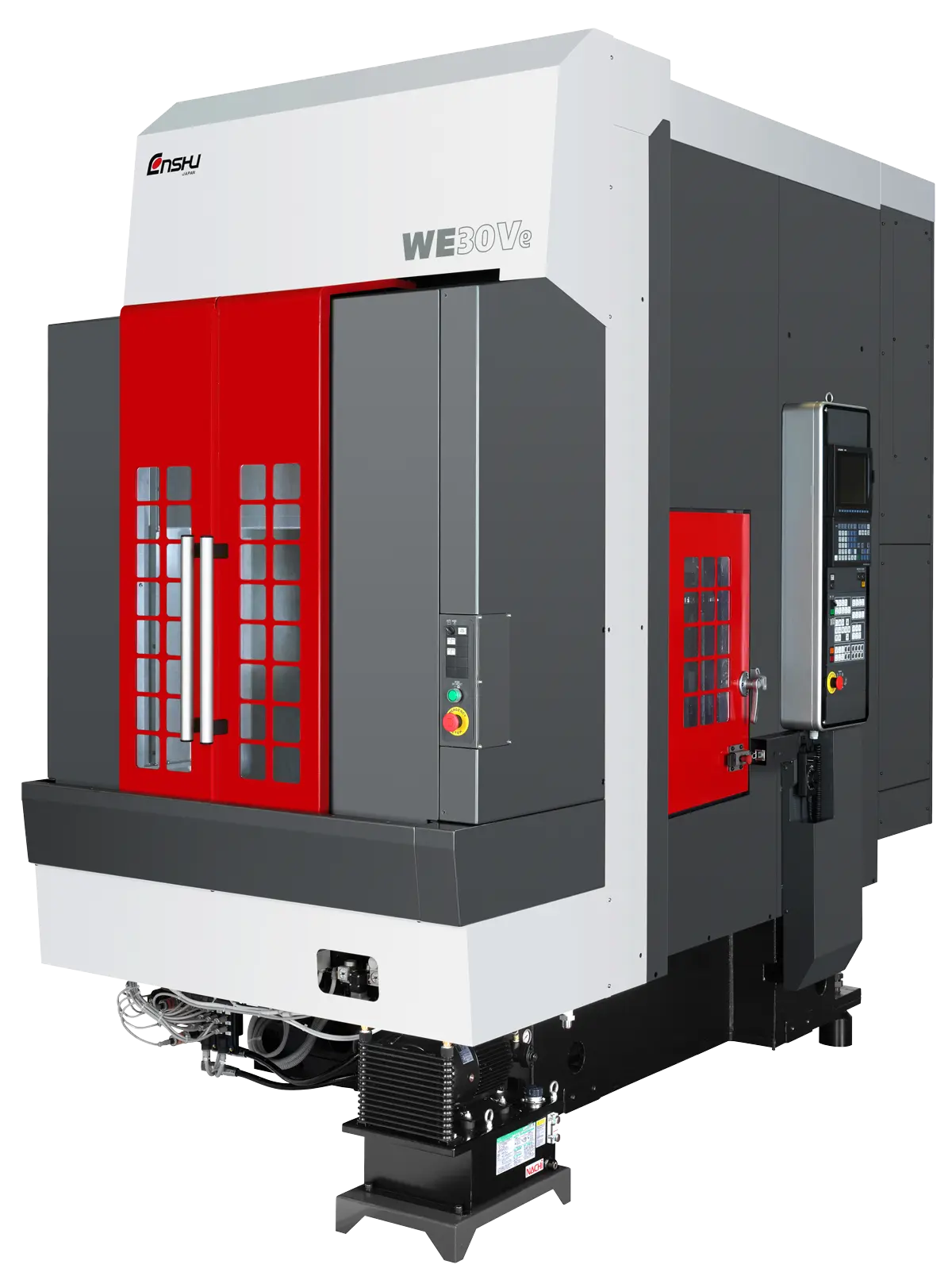

A fusion of high performance and functional beauty, this vertical machining center provides high torque levels in a rigid column structure, making it ideal for large capacity applications. It is available with an optional automatic pallet changer for increased productivity.
| X | 27.5" | 698.5 mm |
| Y | 15.7" | 398.78 mm |
| Z | 11.8" | 299.72 mm |
| Power | 7.4 hp | 5.5 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 21 | 21 |
| Taper | 30 | 30 |
| Table-W | 15" | 381 mm |
| Table-L | 19.7" | 500.38 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc OiMF) | CNC (Fanuc OiMF) |
Dual Rotary APC
