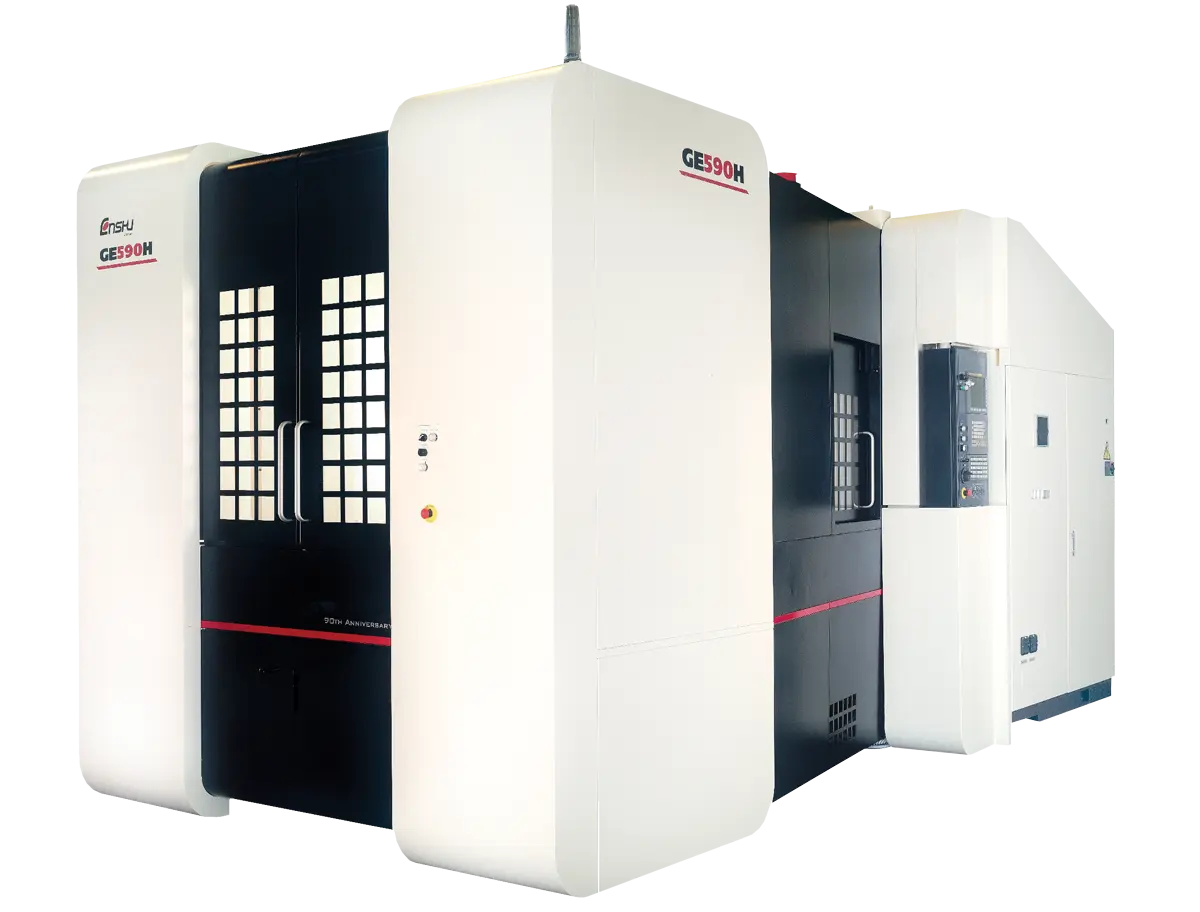

As a 630mm 50-taper horizontal machining center, the GE590H is guaranteed to impress. The rugged design of this HMC offers outstanding cutting performance with superior reliability and a full range of ATC capacities and pallet system choices for the utmost flexibility.
| X | 39.3" | 998.22 mm |
| Y | 35.4" | 899.16 mm |
| Z | 41.3" | 1,049 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 40 | 40 |
| Taper | BIG-PLUS® CAT 50 (OP: BT / HSK) | BIG-PLUS® CAT 50 (OP: BT / HSK) |
| Pallet-W | 630 mm | 24.803" |
| Pallet-L | 630 mm | 24.803" |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 31iMB) | CNC (Fanuc 31iMB) |
