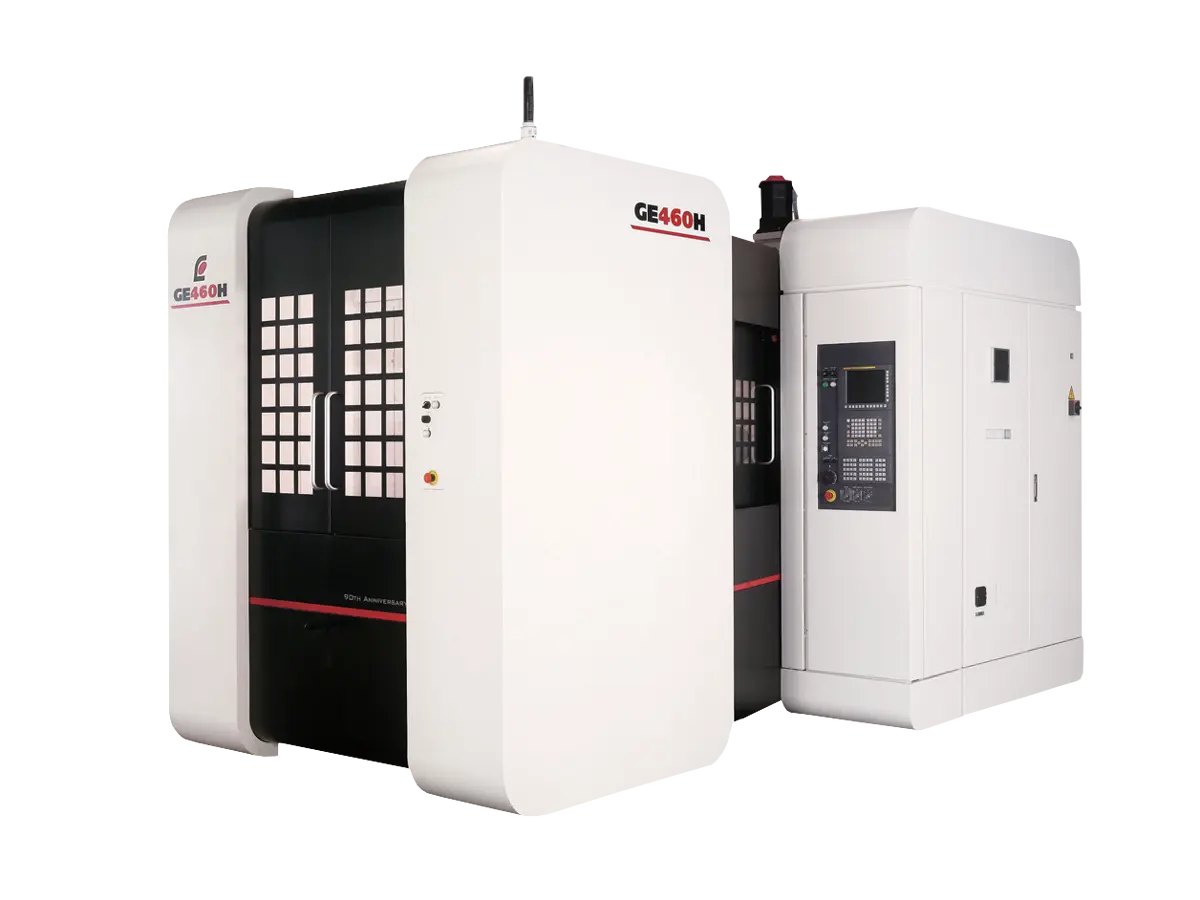

This ultra performance 40-taper horizontal machining center features a 400mm pallet with a traveling column. With room for additional tools and pallets, this HMC provides flexibility to expand its capabilities.
| X | 23.6" | 599.44 mm |
| Y | 23.6" | 599.44 mm |
| Z | 23.6" | 599.44 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 15,000 RPM | 15,000 RPM |

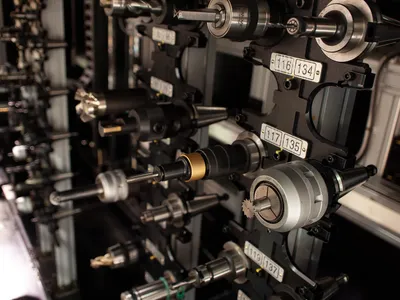

| # ATC | 60 | 60 |
| Taper | BIG-PLUS® CAT 40 (OP: BT / HSK) | BIG-PLUS® CAT 40 (OP: BT / HSK) |
| Pallet-W | 400 mm | 15.748" |
| Pallet-L | 400 mm | 15.748" |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 31iMB) | CNC (Fanuc 31iMB) |
