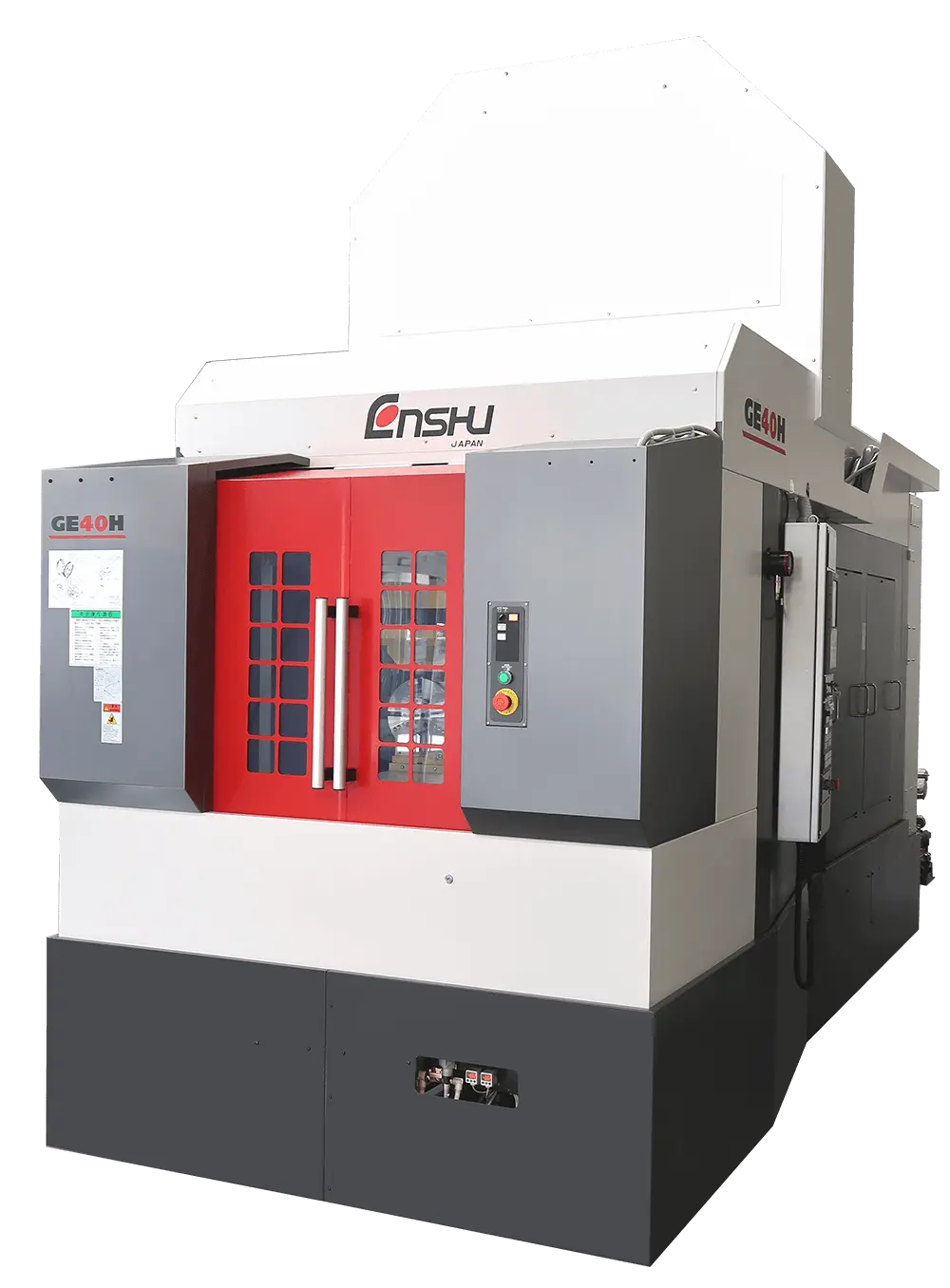

Compact and nimble, this 400mm pallet, 40-tool capacity horizontal machining center is ideal for secondary operations and die cast processing. With it’s 12,000 RPM and Big Plus/CAT40 taper spindle, this HMC has the ability to take on heavier duty jobs in a smaller footprint.
| X | 19.7" | 500.38 mm |
| Y | 19.7" | 500.38 mm |
| Z | 20" | 508 mm |
| Power | 33.5 hp | 25 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 40 | 40 |
| Taper | BIG-PLUS® CAT 40 (OP: BT / HSK) | BIG-PLUS® CAT 40 (OP: BT / HSK) |
| Pallet-W | 400 mm | 15.748" |
| Pallet-L | 400 mm | 15.748" |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 31iMB) | CNC (Fanuc 31iMB) |
