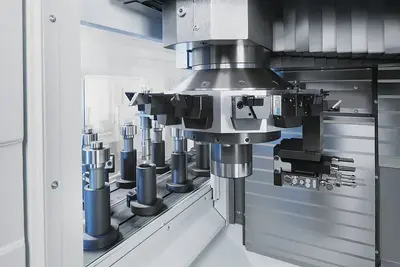

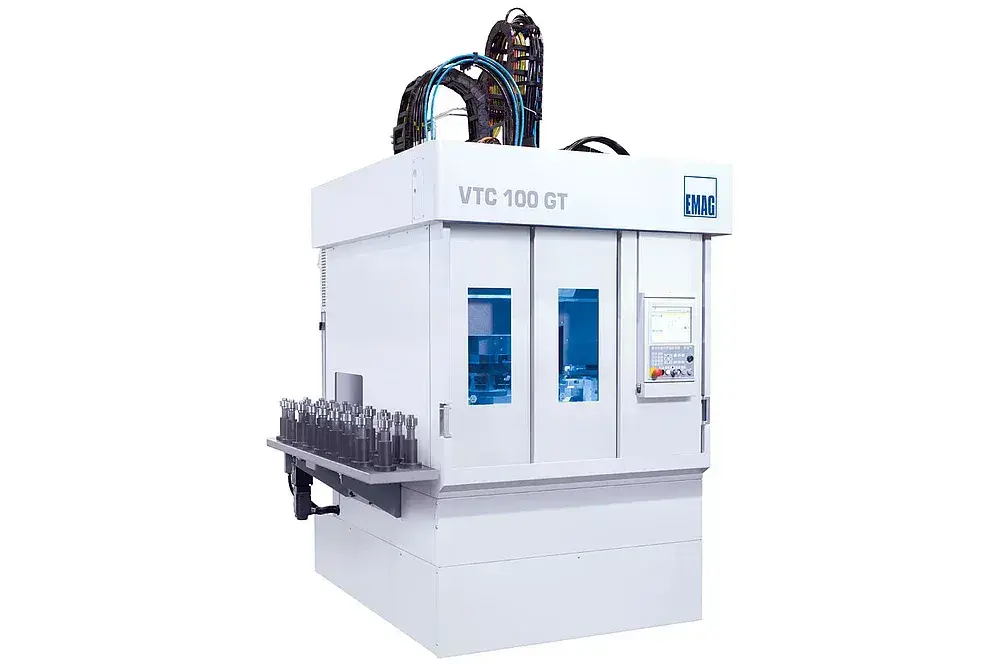

The VTC 100 GT turning and grinding machine ensures fast cycles for hard turning and grinding. The tool turret completes all turning operations, while the grinding takes place at a second station. Thus, the VTC 100 GT multi-functional machine is the perfect production tool for the complete machining of cylindrical bearing seats or shoulders and grooves, for example. Machined in a single clamping, true running errors resulting from separate clamping operations are reduced.
Important to note is that the component may be changed at any time. VTC 100 GT machines can be quickly reconfigured for evolving machining tasks. Even complex combination processes can be configured extremely efficiently on the EMAG turning and grinding combination machine.
- Workpiece dia., max.: 100 mm | 4 in
- Workpiece length, max.: 400 mm | 15.5 in
- Chuck dia., max.: 210 mm | 8.5 in
