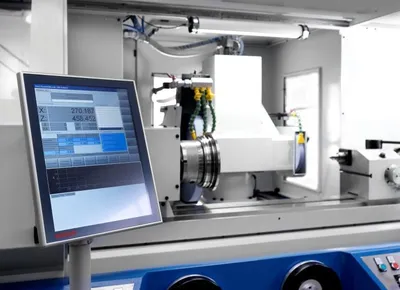

The control system of the W 11 is a modern, fast, grinding-oriented control system with a Windows interface, as well as, a USB and network interface for easy program management. Programming is performed using a dialog interface or DIN ISO programming. All common grinding cycles are included. Options include a DXF converter, geometry editor and special grinding cycles.
The CNC control can be easily used for automatic dressing, grinding of multiple diameters, saving of grinding sequences, contour dressing and taper grinding in rail operation.
Despite a CNC control, manual cylindrical grinding is still possible.
- Grinding length, max.: 650 / 1,500 mm | 25.5 / 59 in
- Center height: 200 mm | 8 in
- Grinding Ø external: 1 / 390 mm | 0 / 15.5 in
