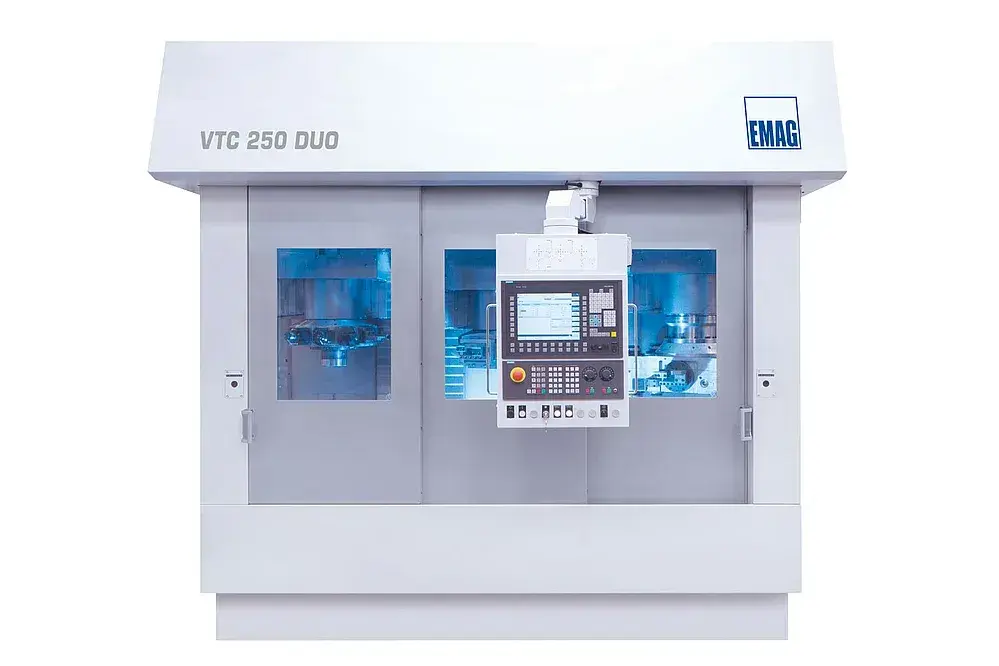

NEW EMAG VTC250/ 250 DUO
Overview
Description
The VTC series of turning centers are specially designed for the vertical machining of shafts, thus turn yet another traditionally horizontal machining process on its head. Users of these vertical turning machines profit from minimal throughput times, true process capability and outstanding precision. The machines provide for the complete-machining of shafts on a single machine with automation included. Technology modules ensure that VTC machines can be customized to suit individual requirements.
Available with a single spindle or in its DUO version, the four-axis VTC 250 machines workpieces up to 140 mm in diameter and 630 mm (optionally 1000 mm) in length. The DUO version combines the functions of two four-axis turning centers and offers different machining technologies on its two stations.
- Workpiece dia., max.: 140 mm | 5.5 in
- Workpiece length, max.: 1,000 mm | 39.5 in
- Chuck dia., max.: 280 mm | 11 in
Specifications
| Chuck Size | 11" | 279.4 mm |
|---|---|---|
| Turning Dia | 5.5" | 139.7 mm |
| Machining Length | 39.5" | 1,003.3 mm |
| Tailstock | yes | yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
