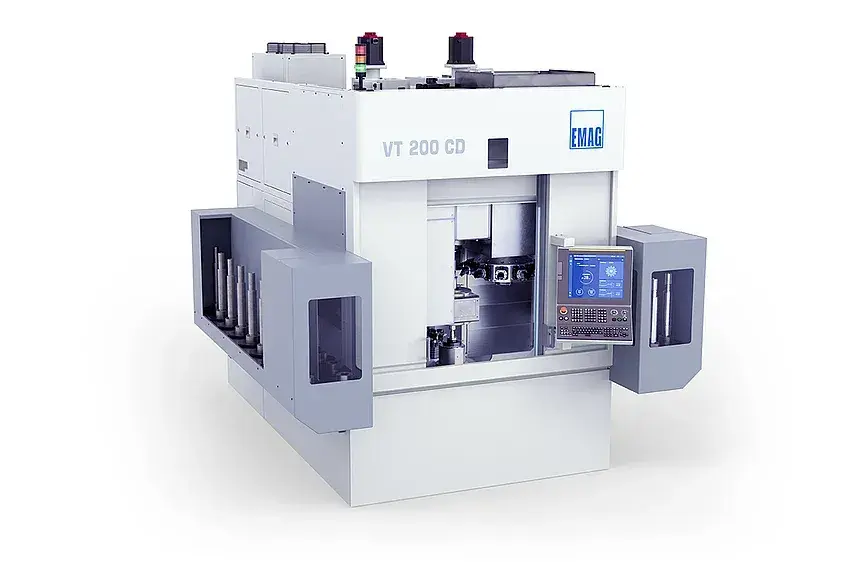

NEW EMAG VT200 CD

The machines in the VT series are an interesting proposition for shafts manufactured in medium to high volumes. This includes transmission shafts, rotor shafts, pump shafts, engine shafts and many more. The VT machines – specifically the center-drive machines – can handle shafts with lengths of up to 540 mm and diameters of up to 80 mm.

The large machining area offered by the VT machine as well as the generous travel path of the two vertically attached tool turrets mean that simultaneous machining of the two shaft ends is always possible. For longer workpieces, an additional steady rest can be easily used.

For machining shaft ends, the machines in the VT series can also be equipped with a center drive – as can be seen from the name VT 200 CD (center drive). The shafts are then also clamped in this center drive. Depending on the workpiece, the shaft is clamped on one or two clamping planes using collets or clamping jaws inside the center drive. Clamping is performed mechanically using springs. The clamp is released hydraulically.

- Workpiece dia., max.: 80 mm | 3 in
- Workpiece length, max.: 540 mm | 21.5 in
