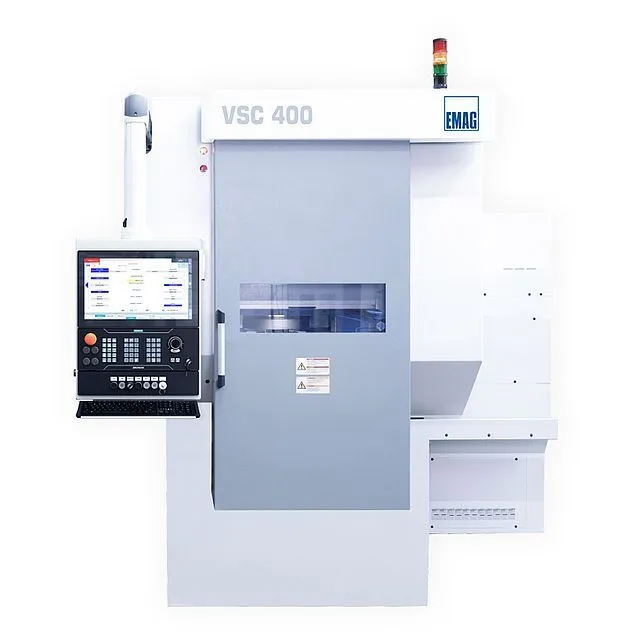

NEW EMAG VSC400/450
Overview
Description

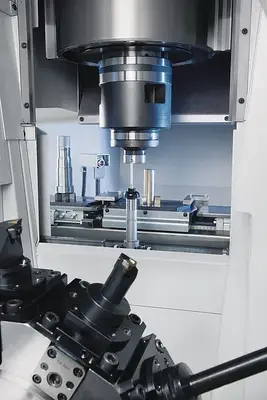

The VSC 400 / 450 turning machine with vertical turning technology can process round parts with a chuck diameter up to 460 mm.
The advantages of the solid vertical construction of the VSC 400 / 450 lathe become apparent in the production of gears, chain wheels, couplings, components for CVTs, hinge pins, conrods, rocker arms, bearing rings or piston rings. The vertical layout of the VSC 400 / 450 lathe offers highly favorable chip flow conditions that make even dry machining an uncomplicated process.
All machine modules, including the machine base of MINERALIT® polymer concrete and its integrated tooling systems, are a rigid, vibration-resistant design.
- Workpiece dia., max.: 400 / 0 mm | 15.5 / 0 in
- Workpiece length, max.: 160 mm | 6.5 in
- Chuck dia., max.: 460 mm | 18 in
Specifications
| Swing | 16.5" | 419.1 mm |
|---|---|---|
| Chuck Size | 18" | 457.2 mm |
| # Axis | 2 | 2 |
| Turning Dia | 15.5" | 393.7 mm |
| Machining Length | 6.5" | 165.1 mm |
