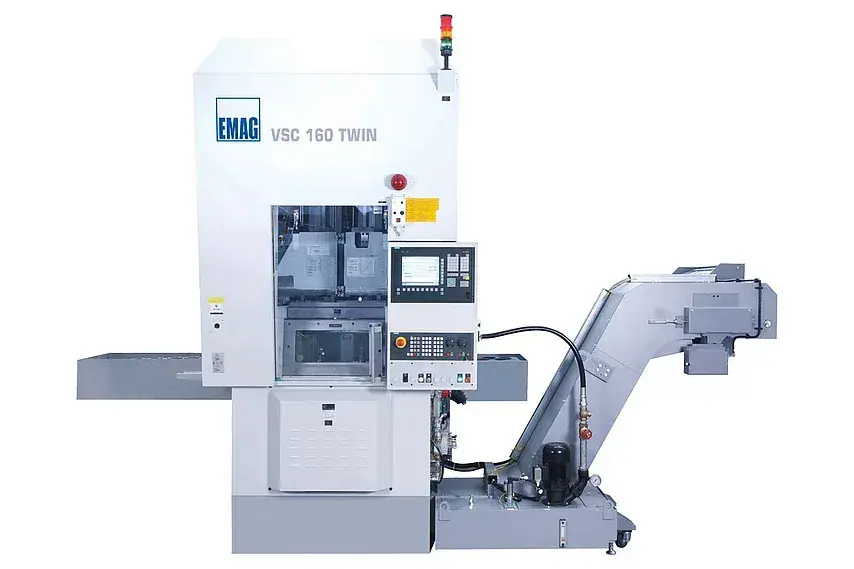

NEW EMAG VSC160 TWIN

The VSC 160 TWIN automatic lathes are high-performance, high-precision vertical multi-spindle machines for mass production, simultaneously machining two workpieces. The VSC 160 TWIN series of automatic lathes combine high-yield production with a small footprint.

EMAG VSC 160 TWIN multi-spindle machines ensure workpiece diameter and length can be corrected for each spindle individually – a requirement for achieving the kind of precision demanded by today’s production environment.

VSC 160 TWIN Automatic Lathes – Twice the Components from the Same Footprint

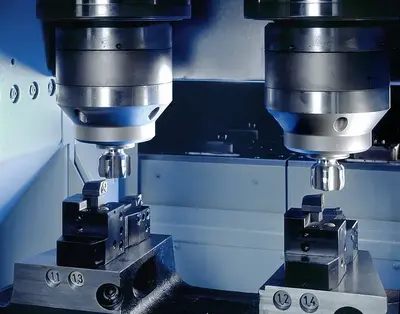

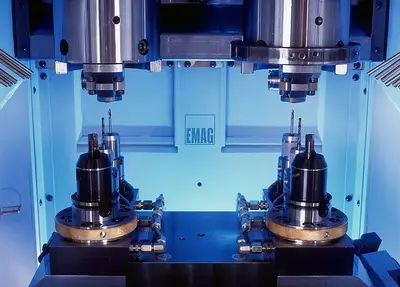

The TWIN-type automatic lathes are used to simultaneously machine large batches of workpiece pairs with identical operating cycles on a minimum footprint. A single machining area features two work spindles and the overhead slides of these automatic lathes are separate entities. Both slides and their spindles feature separate X- and Z-axis drives and separate measuring systems with linear scales in all axes.

- Workpiece dia., max.: 130 mm | 5 in
- Workpiece length, max.: 80 mm | 3 in
- Chuck dia., max.: 160 mm | 6.5 in
