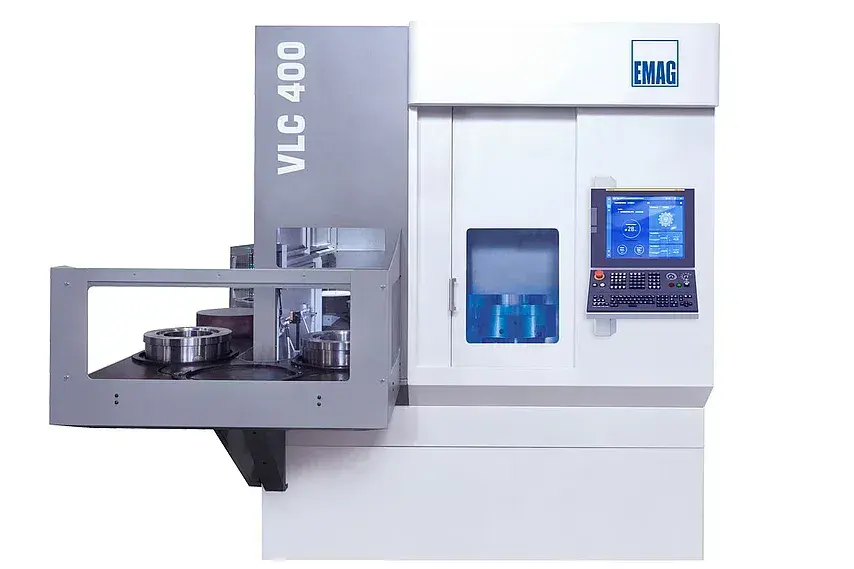

NEW EMAG VLC400

The VLC 400 vertical pick-up turning machine gives the user nearly unlimited equipping options with machining technologies. Whether turning or milling, drilling or grinding – the user has access to the wide technology portfolio of the EMAG Group. This makes it possible to realize even complex manufacturing objectives using one or more machines from the VLC series. The largest machine in the VLC series, the VLC 400 is designed for chucked parts up to 400 mm in diameter.

The core of the VLC vertical turning machine is a base made from Mineralit® polymer concrete. It ensures low-vibration machining for long tool lifetimes and very high machining quality. High productivity and short chip-to-chip times are the result of the machine's top power combined with the pick-up function of the drive spindle. With this function the machine loads itself, taking parts from the integrated conveyor belt (likewise fully configurable) and feeding them into the machining area.

- Workpiece dia., max.: 400 mm | 15.5 in
- Workpiece length, max.: 300 mm | 12 in
- Chuck dia., max.: 500 mm | 19.5 in
