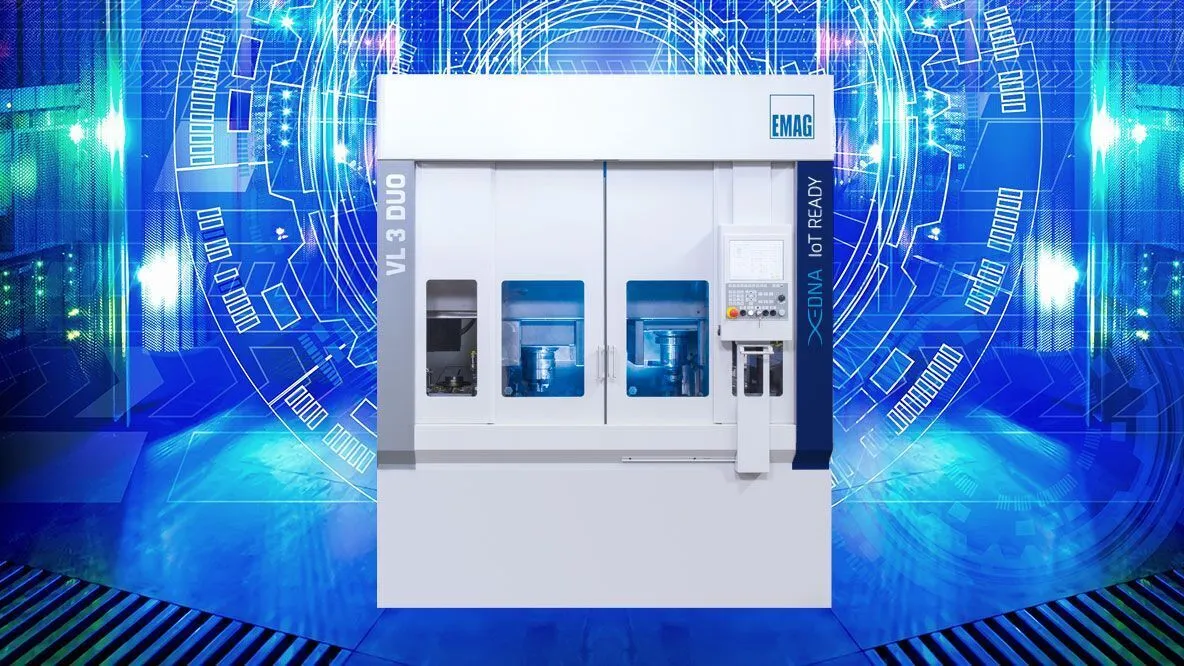

NEW EMAG VL3 DUO

The EMAG VL 3 DUO CNC Machine, an efficient twin-spindle machine solution for chucked parts up to 150 mm in diameter, expands the product portfolio of the extremely successful VL series.

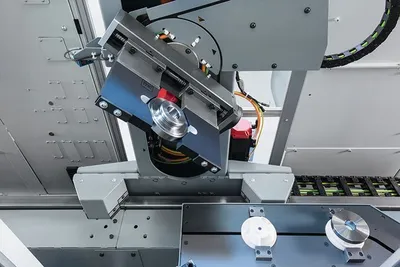

Like every EMAG modular turning machine, the VL 3 DUO multi-spindle machines are equipped with its own parts storage unit and a pick-up spindle for each work area.
The work areas are mirror images of each other, but each has their own working spindle. With output of up to 17.9 kW and torque up to 144 Nm, these spindles have the power for fast and precise cnc machining. Each work area features a tool turret with 12 tool positions, which can be loaded with driven tools as well as non-rotating lathe tools.

- Workpiece dia., max.: 150 mm | 6 in
- Workpiece length, max.: 110 mm | 4.5 in
- Chuck dia., max.: 210 mm | 8.5 in
