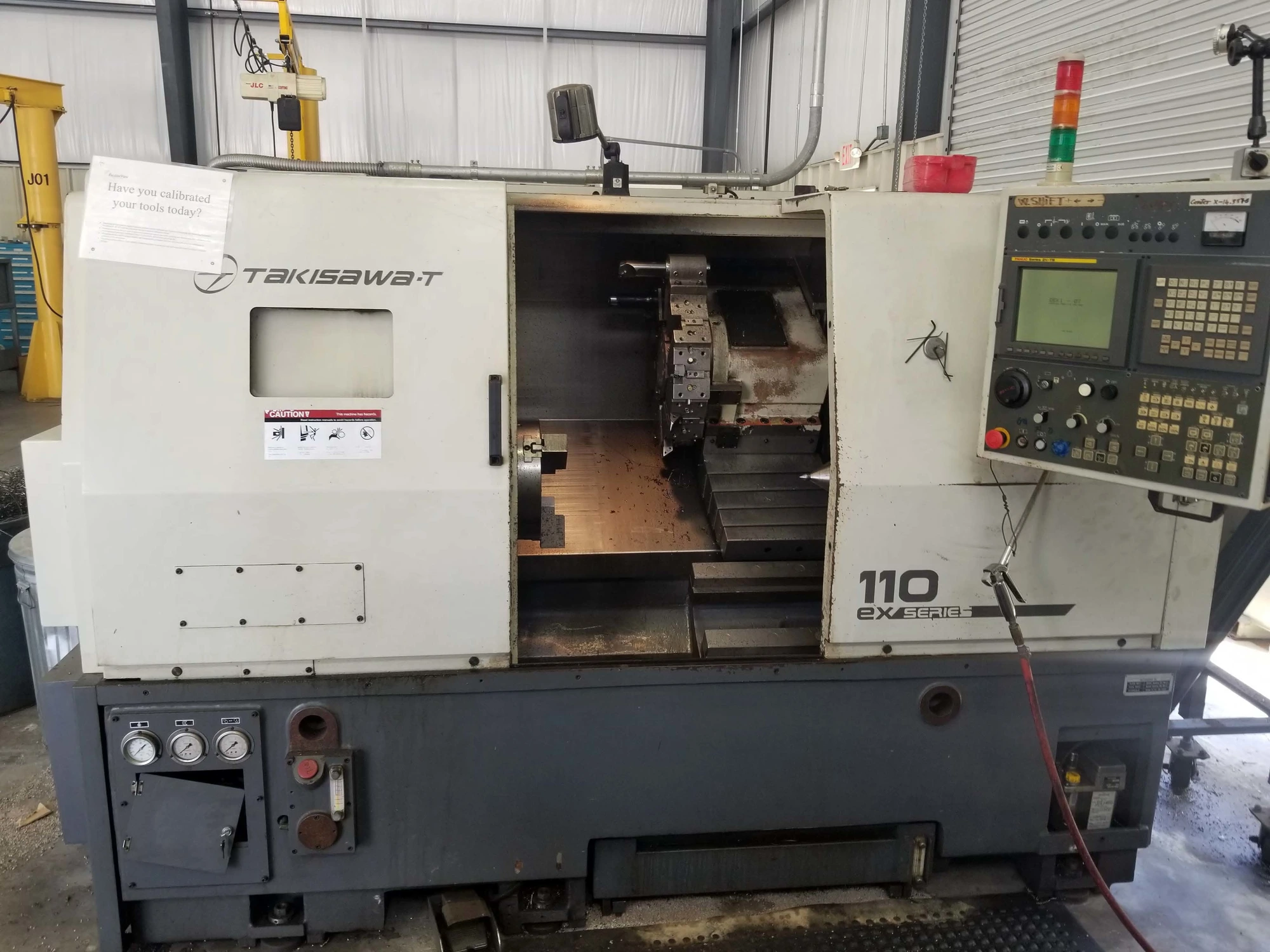

USED 2007 TAKISAWA EX-110

2007 Takisawa EX-110 CNC Lathe with Fanuc 21i-TB Control, 12" Kitagawa Chuck, Tailstock, Chip Conveyor

Maximum Swing.......................19 1/2"
Maximum Turning Diameter............15 3/4"
Maximum Turning Length..............28"
X-Axis Travel.......................8-1/2"
Z-Axis Travel.......................28"
Spinde Power........................25 HP
Spindle Bore........................3.38"
Bar Capacity........................3"
Spindle Nose........................A2-8
Spindle Speed Variable..............50 - 3500 RPM
Turret..............................12 Position
Tool Shank Size - Square............1"
Tool Shank Size - Round.............2"
Tailstock Quill Diameter............4 1/4"
Tailstock Stroke....................5.880"
Tailstock Quill Center..............MT#5
Tailstock Body Travel...............22.880"
Approximate Dimensions..............110"L x 67"W x 71"H
Approximate Weight..................11,000 LBS

Fanuc 21i-TB CNC Control
12” Kitagawa Chuck
Tailstock
3-Color Alert Light
Chip Conveyor

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
