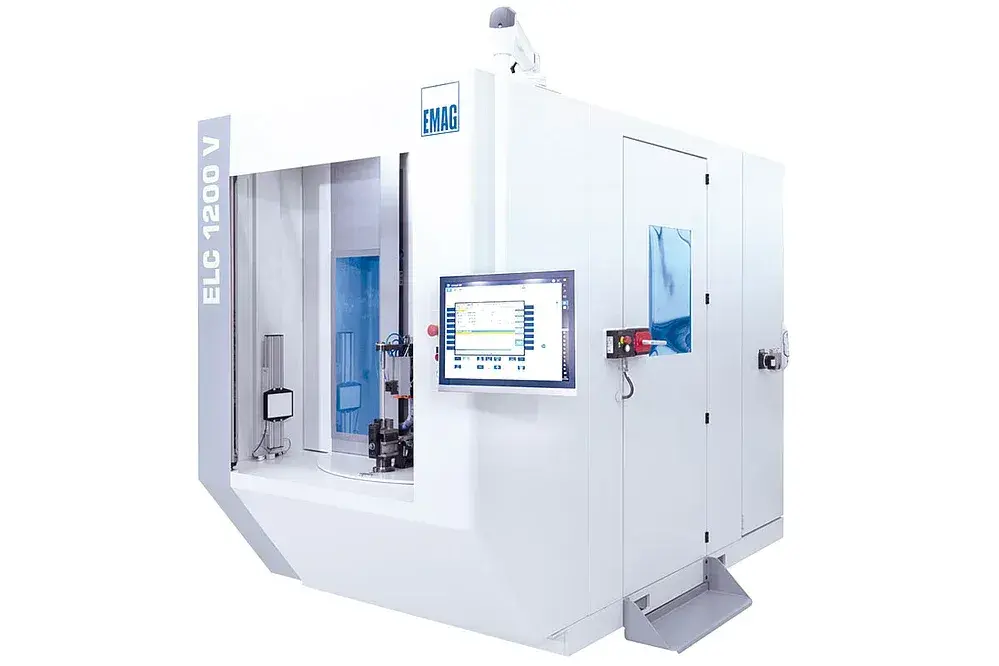

NEW EMAG ELC1200 V

ELC 1200 V Vertical Laser Processing Machine for Shaft Components.

The vertical laser processing machine ELC 1200 V is designed for workpieces up to 1200 mm in length and impresses with its fast processing, a small footprint and extreme ease of operation. In addition to laser welding, other laser processes such as laser cleaning and laser hardening can be used on this new machine.

ELC 1200 V Vertical Laser Processing Machine with EDNA HMI for easiest operation.

The ELC 1200 V offers maximum flexibility in production. The 3-axis laser lens is NC-controlled and can be configured to meet a wide variety of individual requirements.
In combination with the NC-controlled C-axis of the clamping device, the welding lens can also produce interpolated welds. This means that, for example, a quick conversion for laser welding of families of parts can be implemented without any problems. The clamping system is, of course, just as flexible as the laser lens.

Highlights:
- Designed for simple workpieces/processes
- Vertical workpiece clamping
- Workpiece lengths between 50 mm and 1,200 mm
- One or more welds
- Flexible due to NC-controlled axes
- Cycle times start at approx. 6 seconds
- Loading and unloading during machining
- Simplified user interface EMAG DNA panel

EMAG DNA Panel
The key highlight, however, is the graphical user interface with which the machine can be controlled and programmed.

HMI Advantages with the ELC 1200 V:
- HMI specially developed and optimized for laser applications
- Easy-to-learn operation through graphical user guidance
- Easy set-up of new workpieces using “Teach in”
- SIEMENS CNC screen still fully usable
- IoT interface for data-optimized production (connection to IPC and other EDNA software)
- Multi-device – data can be called up on mobile devices
