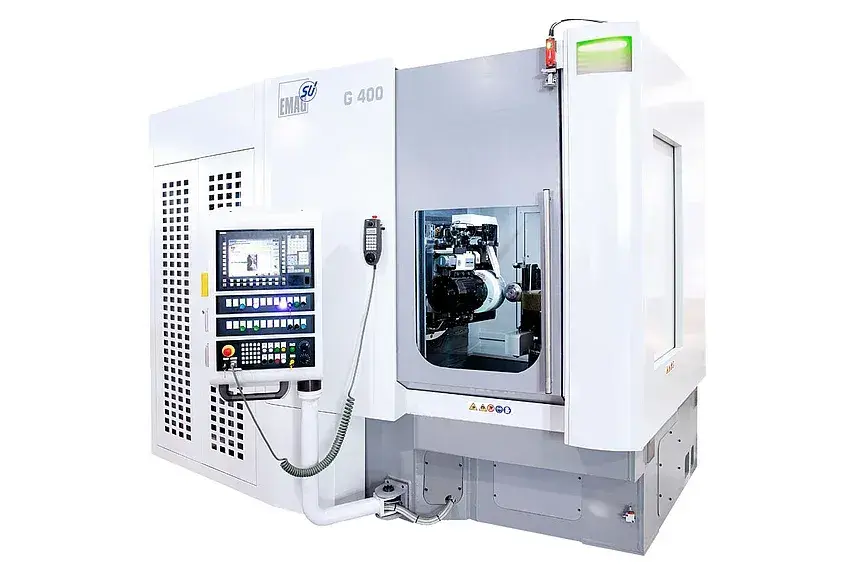

NEW EMAG G400

Rolling and profile grinding machine G 400

The G 400 gear generating grinding machine stands for flexibility: As a gear generating grinding machine, it can be used for efficient and high-quality medium and large series production of wheels and shafts, but also as a profile grinding machine for the production of individual parts - with extremely low cycle times.

Gear grinding machine G 400: Short cycle times for workpieces that are ground with generating and profile grinding.

Efficiency and precision in generating and profile grinding technology
The G 400 is a modern gear and profile grinding machine that has been specially developed for the machining of gears and shaft-type workpieces. It combines high precision, productivity and flexibility. With the ability to machine workpieces up to a diameter of 400 mm, this grinding machine offers innovative solutions for a wide range of industrial applications.

The G 400 generating and profile grinding machine is a universally applicable machine and is particularly suitable for contract gear cutting companies, gear manufacturing, the supplier industry, but also for applications in the truck, agricultural and construction machinery industries as well as in other branches of industry that require first-class surface finishes and dimensional accuracy.

Highest precision in generating and profile grinding
The G 400 is characterized by good accessibility and set-up capability. The conversion from profile grinding to gear generating grinding can be carried out in a short time, which makes it interesting for companies with a large component range. In addition, a wide range of technologies can be used, from fine grinding and polishing grinding to a special technology for the production of noise-reduced tooth profiles. Visualization in the software also makes it easy for the machine operator to produce low-interlacing tooth profiles, which significantly reduces set-up times and underlines the machine's ease to operate.

Versatile applications with the G 400
The G 400 generating and profile grinding machine is suitable for both series production and prototype manufacture. Its modular design allows it to be adapted to individual requirements. From gear generating grinding to the machining of gears and shafts, the G 400 offers maximum flexibility for different grinding technologies.

- Module area gear generating grinding: 0.5 / 8
- Profile grinding module area: 0.7 / 12
- Workpiece dia., max.: 400 mm | 15.5 in
