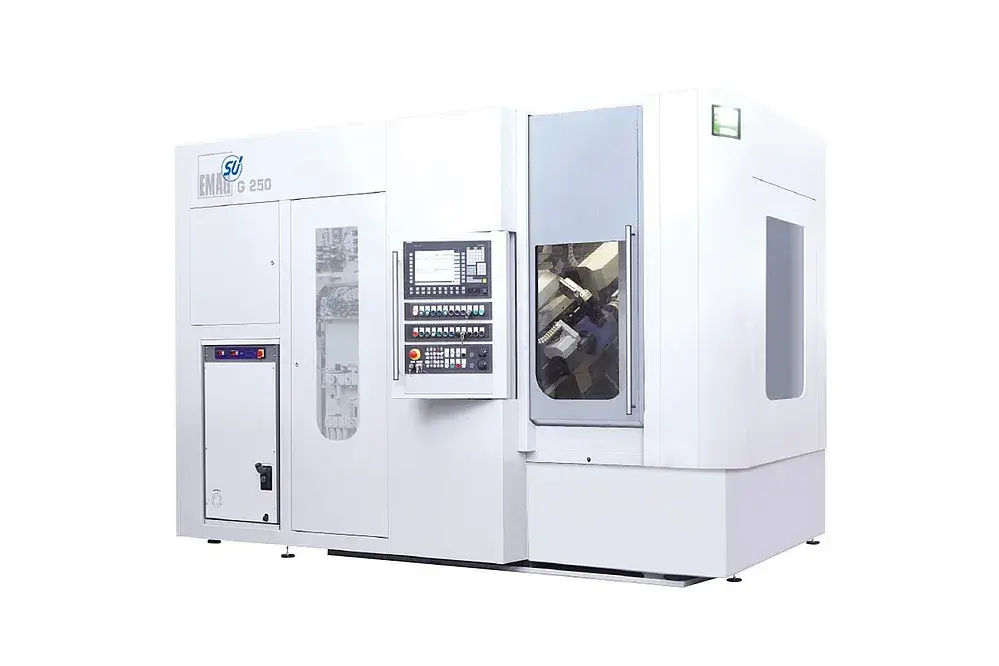

NEW EMAG G250

Gear generating and profile grinding machine G 250

The G 250 gear generating and profile grinding machine has been especially developed for very low cycle times and for top-quality and efficient mass production of gears.

G 250 Gear Generating and Profile Grinding Machine: Short Cycle Times and Premium quality for Mass Production.

The EMAG SU G 250 gear generating and profile grinding machine is based on iron cast structure with high stiffness.

The machine is an innovative, compact and extremely flexible gear grinding and profile grinding machine.

The EMAG SU G 250 has been especially developed for very low cycle times and for top-quality and efficient mass production of gears with outside diameters up to 250 mm and shafts with lengths up to 550 mm. Moreover, the machine features dual work spindles that eliminate non-productive times almost completely.

Particular attention has been paid to the state-of-the-art solutions that allow a fast tool change, e.g. from profile to worm grinding, guaranteeing an unmatched process versatility.

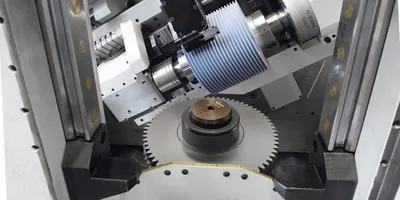

This gear generating and profile grinding machine can use both gear generating grinding wheels and profile grinding wheels as well as grinding worms, both in ceramic and in electroplated CBN.

Simple design concepts in terms of tooling and dressing technology, fast automation and amazing user-friendliness are the strengths behind this unique machine.

- Module range: mm 0.5 - 7.0
- Workpiece dia., max.: 250 mm | 10 in
- Workpiece length, max.: 550 mm | 21.5 in
