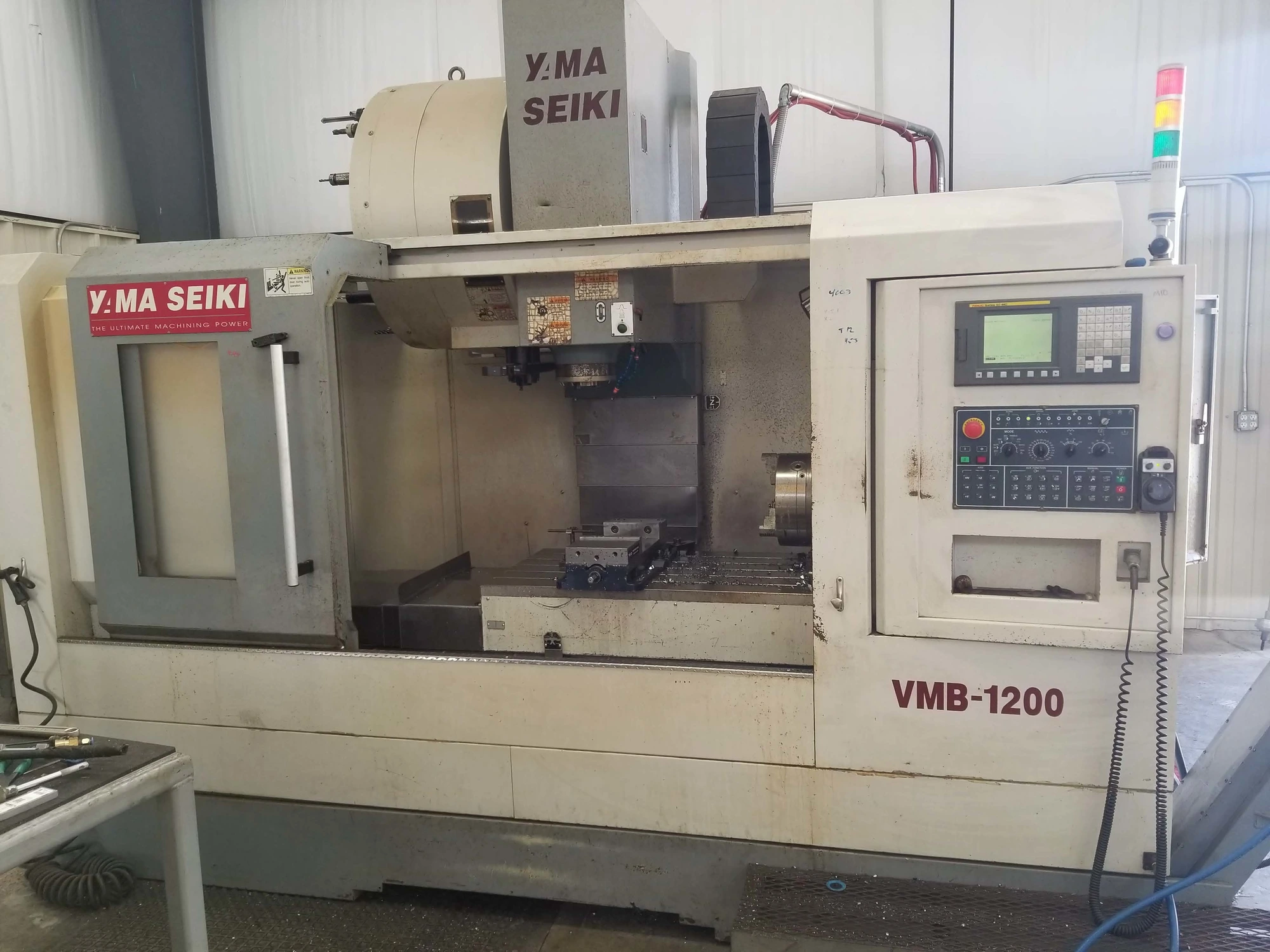

2007 Yama Seiki VMB-1200 Vertical Machining Center with Fanuc Oi-MC Control, 6,000 RPM, CAT-50 Spindle. Machine Includes 12" 4th Axis Rotary Table and Chip Conveyor
| X | 47.2" | 1,198.9 mm |
| Y | 23.6" | 599.44 mm |
| Z | 23.6" | 599.44 mm |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 51.2" | 1,300.5 mm |
| Table-L | 23.6" | 599.44 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc Oi-MC) | CNC (Fanuc Oi-MC) |
| Dimensions | 134" x 87" | 134" x 87" |
| Weight | 16,500 LBS | 16,500 LBS |
Table Size.....................51.2" x 23.6"
Max Table Load.................2,650 LBS
X-Axis Travel..................47.2"
Y-Axis Travel..................23.6"
Z-Axis Travel..................23.6"
Spindle Nose to Table..........4.9" - 28.5"
Spindle Speed..................6,000 RPM
Spindle Taper..................CAT-50
Number of Tools................24 ATC
Tool Change Time...............2.7 seconds
Air Required...................85 PSI; 6 scfm
Electrics......................220VAC / 66FLA / 3-phase / 25 kva
Dimensions.....................134" X 87"
WEIGHT ....................... 16,500
Fanuc Oi-MC CNC Control
USB & PCMCIA Interface
MPG Handwheel Control
Rigid Tapping
6,000 RPM, CAT-50 Spindle
24 Station ATC
Set-Tru 12" 4th Axis Rotary Table
Spindle Chiller Unit
Coolant System
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
