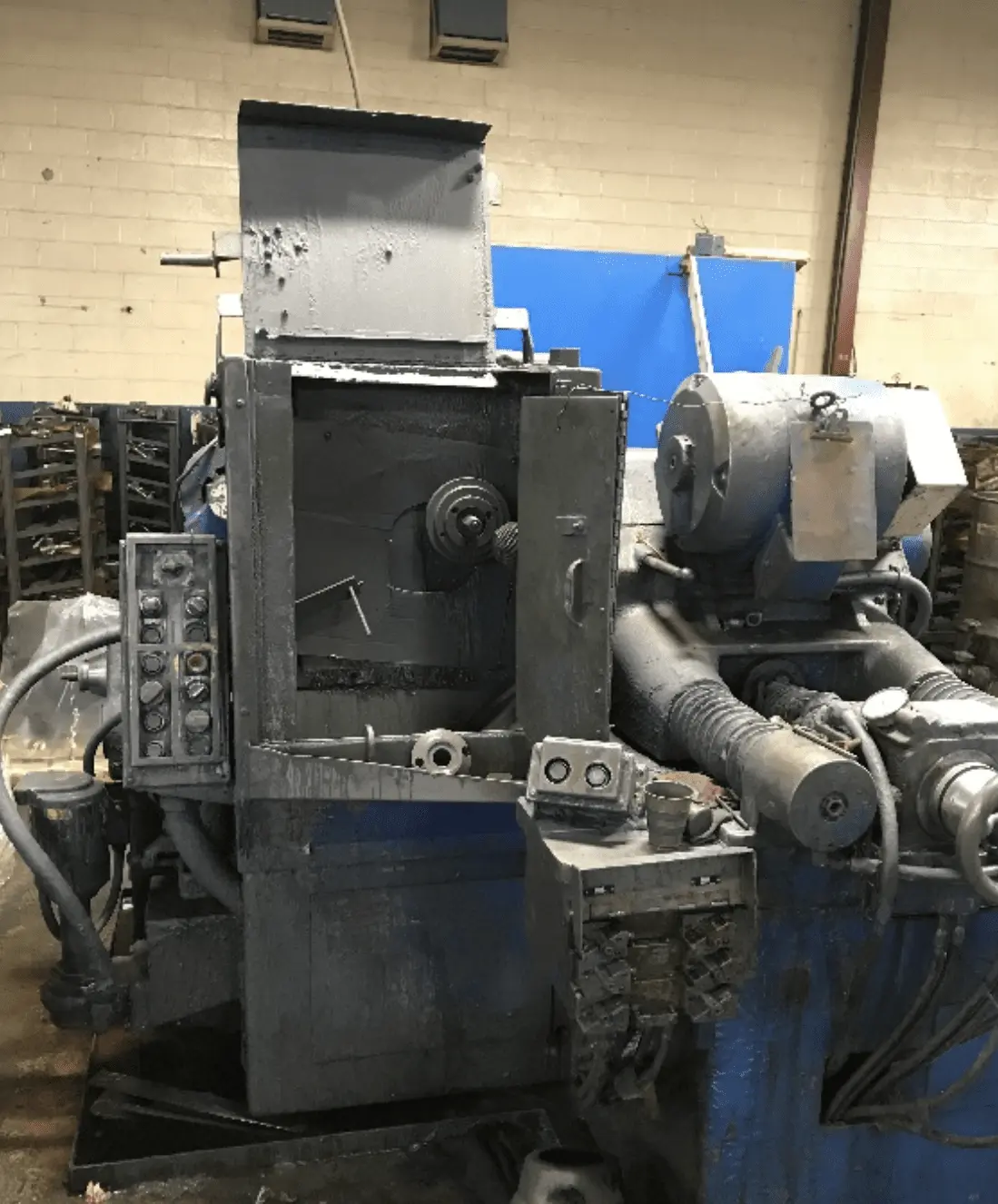

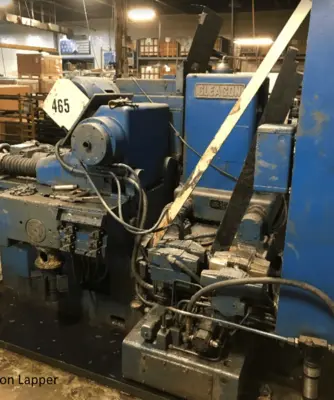

USED 1960 GLEASON NO. 516 HYPOID

Max. Gear Diameter: 24″
Max. Pinion Diameter: 12″
Offset of Gear Spindle Above or Below: 6″
Pinion Spindle
Diameter of Taper Hole at Large End: 2 29/32″
Taper per Foot: 39/64″
Depth of Taper: 3″
Diameter of Hole Through Spindle: 3.740″
Gear Spindle
Diameter of Taper Hole at Large End: 2 19/64″
Taper per Foot: 1/2″
Depth of Taper: 3″
Diameter of Hole Through Spindle: 2.167″
Electrical at 60 Cycle
Main Motor: 5 H.P./1800 R.P.M.
Hydraulic Motor: 3/4 H.P./1800 R.P.M.
Lapping Compound Pump Motor: 1 H.P./1200 R.P.M.
Oscillating Drive Motor: 1/4 H.P./ 0 to 1725 R.P.M.
Dimensions: 85″x82″x82″
Weight: 11,200 Lbs
