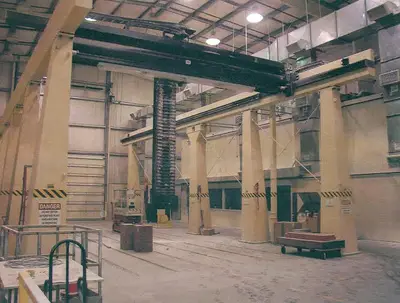

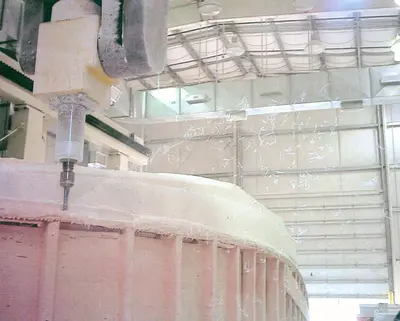

USED 2003 PAR SYSTEMS XR 5225 GANTRY MILLING SYSTEM
Overview
Specs
X-Axis Gantry Travel: 600″
Y-Axis Carriage Travel: 240″
Z-Axis Mast Travel: 120″
# of Axes: 5
Max Spindle (RPM): 18,000
# of Spindles: 1
Spindle Motor: 16 HP
C Axis: 370 Degrees
B Axis: 260 Degrees
Power/ Air Requirements:
Drive Cabinet: 14 KVA/460V/3 Phase/60HZ
Control Console: 120V/15A/1 Phase/60HZ
Frequency Converter:460V/30A/3 Phase/60 HZ
Refrig. Cooling System: 230V/12.2A/1 Phase/60HZ
Total Power Required for System: 480V/70A/3 Phase/60HZ
Equipped With:
50′ x 18′ x 10′ Performance Travel

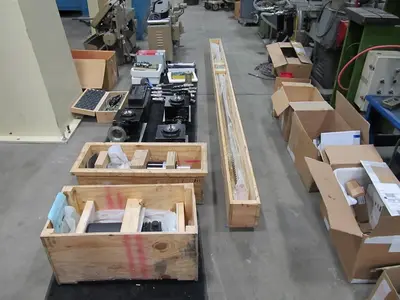

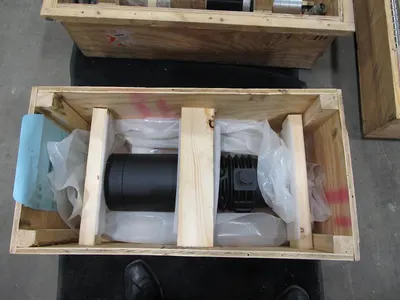

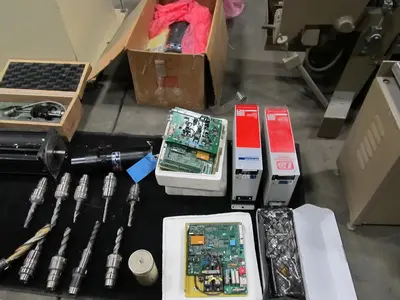

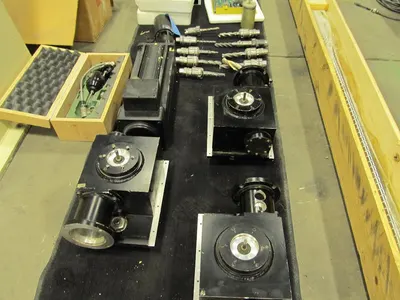

Spare Parts
Tooling
