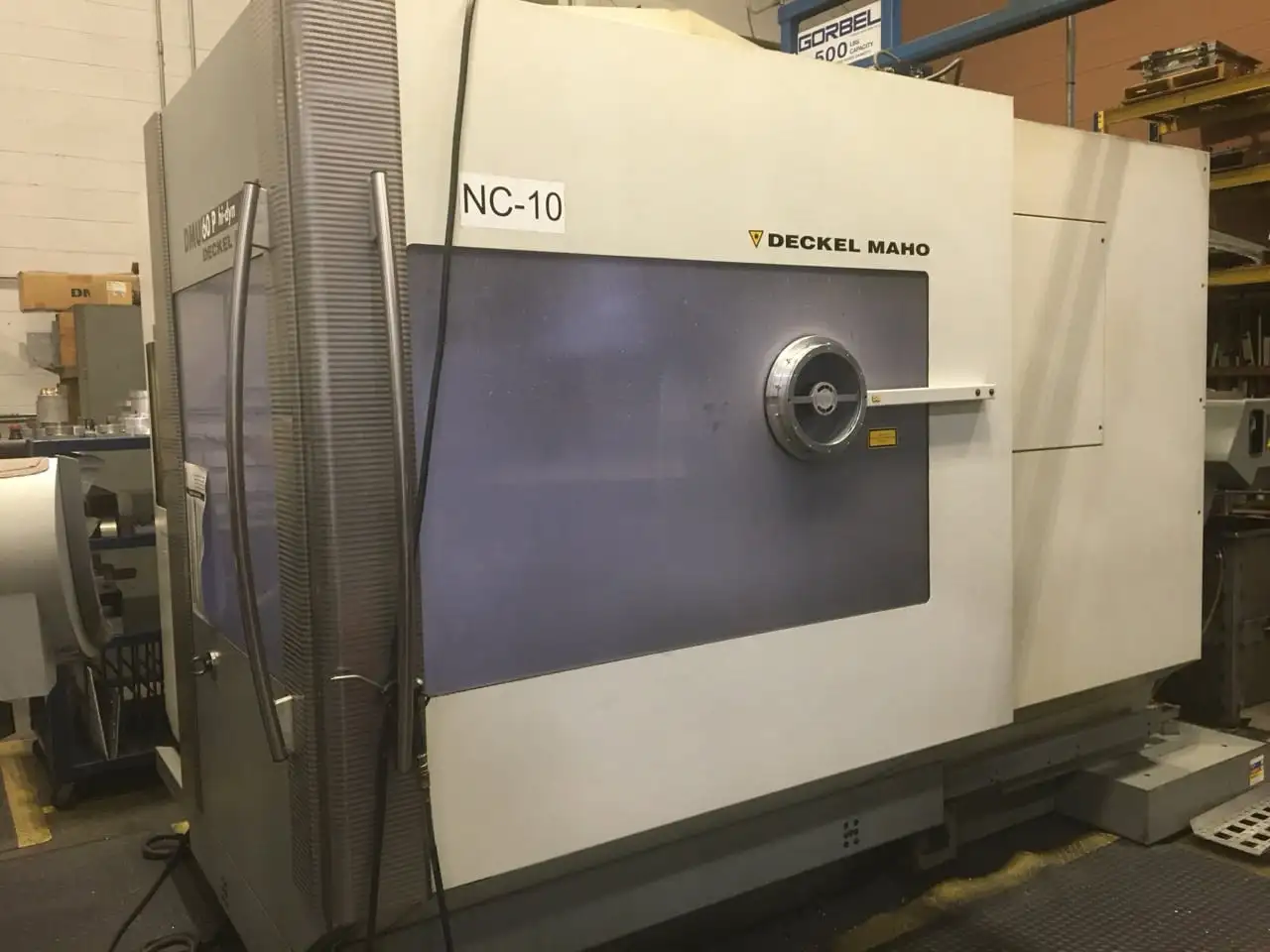

USED 2001 DECKEL MAHO 60P HI-DYN

Measurements:
Width: 248.03″
Depth: 255.91″
Height: 106.30″
Machine Weight: 23,589.4 lbs
Control Unit:
Model: TNC 426
Brand: HEIDENHAIN
Main Drive:
Spindle Speed Range: 12,000 RPM
Tool Taper: SK 40
Number of Axis: 5
Movement:
X-Axis: 23.62″
Y-Axis: 27.56″
Z-Axis: 23.62″
Technical Machine Benefits:
Feed Rate: 5905.51″/min
Rapid Traverse: 1968.50″/min
Clamping System: DIN 69872
Tool Changer: 30 Places
Type: Horizontal Magazine
Automatic Swivelling Milling Head
Automatic Change from Vertical to Horizontal Machining
Main Drive Type: AC
Drive Power (100% ED): 19 kW
Qualitative Machine Benefits:
Theoretical Pump Output: 158 gallons
Scraper Flight Conveyor, Coolant Through Spindle Form Center Dead Form
Tilting NC Rotary Table: 24.80″
Type of Measurement System: Direct Measurement System Table Surface: 24.80″
Center Diameter: 1.97″
Maximum Load (Table Center): 1102.31 lbs
Slot Width: 0.55″
Distance Between T-Slots: 2.48″
Max. Rotational Speed 4. Axis: 7 RPM
4 Axes (Turning Radius): 360 x 0.001 degrees
5 Axes (Turning Radius): -45 / +30 x 0.001 degrees
Rotational Speed of Axis 5: 7.3 RPM
