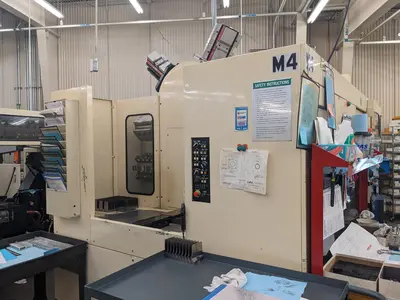

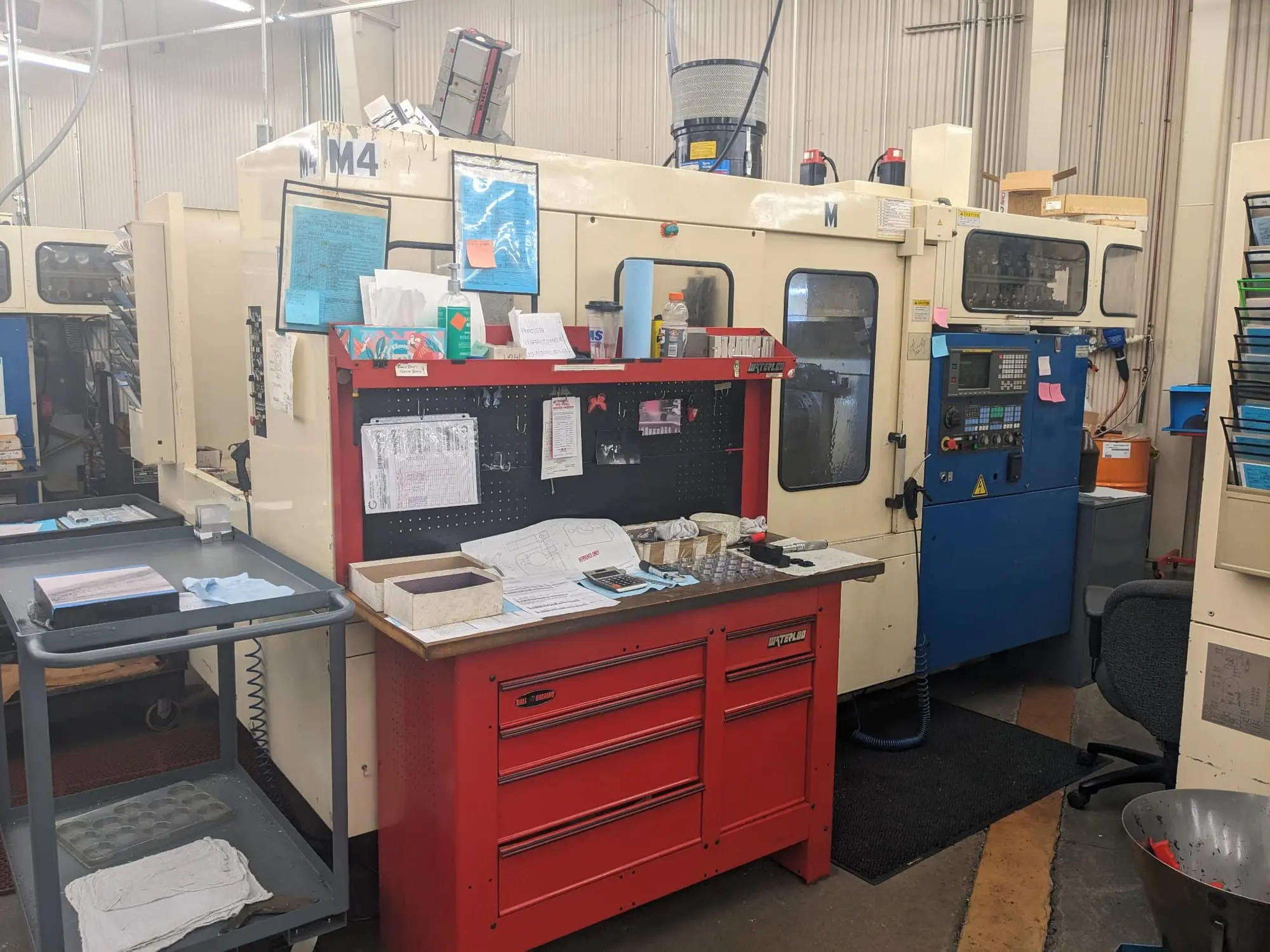

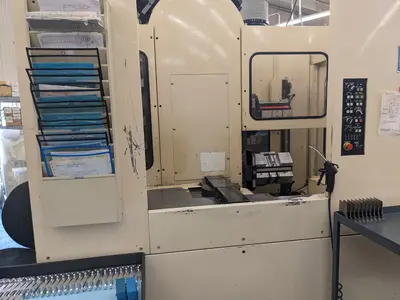

USED 1995 TSUGAMI FMA3
Overview
Specs
Pallet Size……………11.75″ X 11.75″ (298.45)
Max Workpiece Weight……176 lbs
Maximum Workpiece Size….11.81″ x 11.81″ x 14.17″
X-Axis Travel………….14.17″
Y-Axis Travel………….13″
Z-Axis Travel………….15.74″
Spindle Motor………….10 HP
Spindle Taper………….BT-40 (CAT-40 Available)
Spindle Speed………….10,000 RPM
Rapid Traverse Rates……945 IPM
Feed Rates…………….236 IPM
Tool Changer…………..62
Tool Change Time……….1 Second
Tool Change Chip Time…..5 Seconds
Dimensions…………….159 x 98 x 108
Weight………………..23,148
Equipped With:

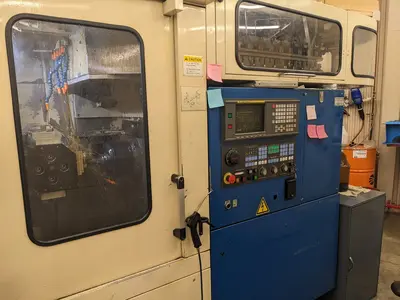

Fanuc CNC Control
10,000 RPM Spindle
62 Station ATC

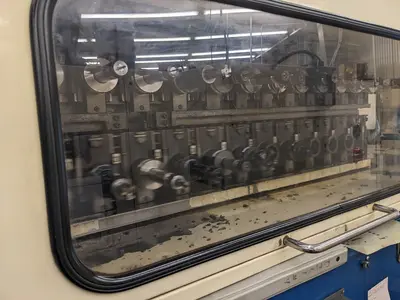

11 Station Pallet Pool
Auto Part Gauging
Tool Breakage Detection
Chip Conveyor
