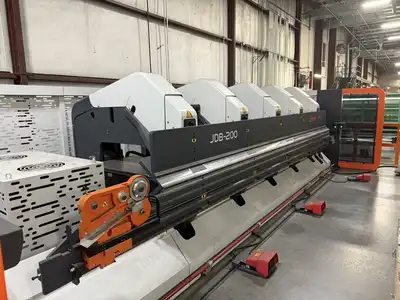

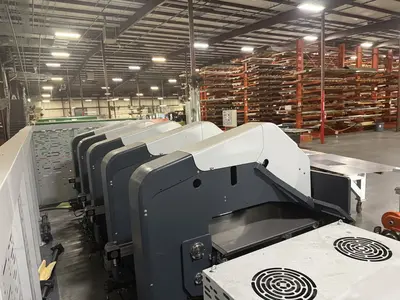

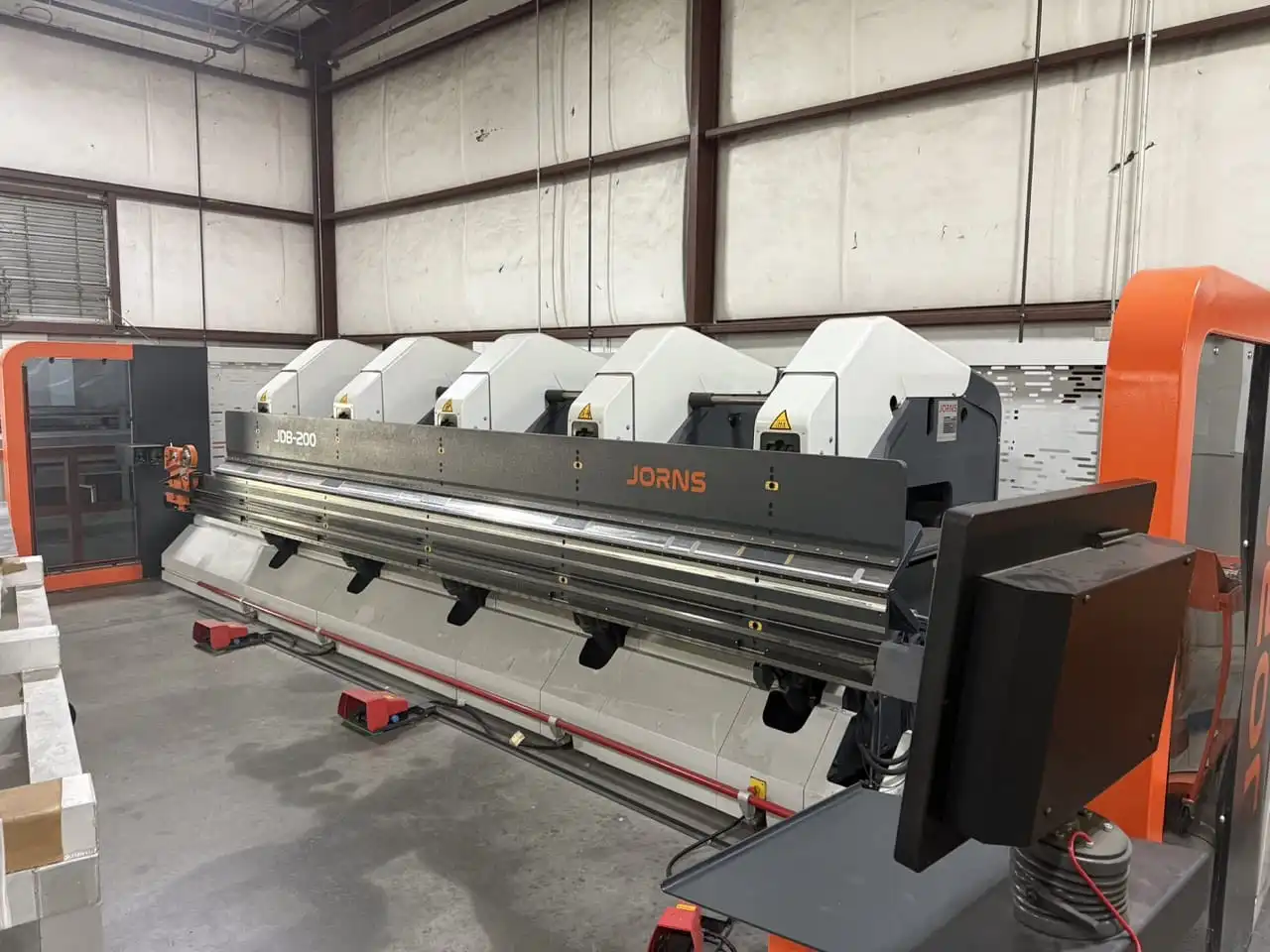

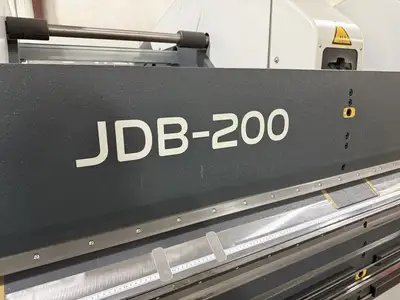

USED 2021 JORNS JDB-200G
Overview
Specs
Capacity: 0.125” x ‘
Maximum Bending Length: 204″ (5,200mm)
Bending Capacity w/ Auxiliary Bar:
Maximum Thickness Full Length, Mild Steel: 0.0787″ (2 mm)
Maximum Thickness Full Length, Aluminum: 0.125″ (3 mm)
Maximum Thickness Full Length, Stainless Steel: 0.059″ (1.5mm)
Slitter SL, 3mm Capacity, Hydraulic, 750mm/s
Detachable Including Support Roller
DSP, Double Servo Pump
Hydraulic Cooling System
CP300 Control System for Servo-Electric Gauge System
Additional SD Card for Control
Standard Safety Features
Geometry ‘G’
RH Hydraulic Material Thickness Adjustment
DP Dynamic Positioning
Pretension of Bending Beam
LED Operation of Control Lights
Infeed Table, Automated
Electric Clamping Fingers, Straight or Conical Bending (x4)
Electric Short Part Clamping Finger (x2)
Vacuum Gripper, Automated (x4)
