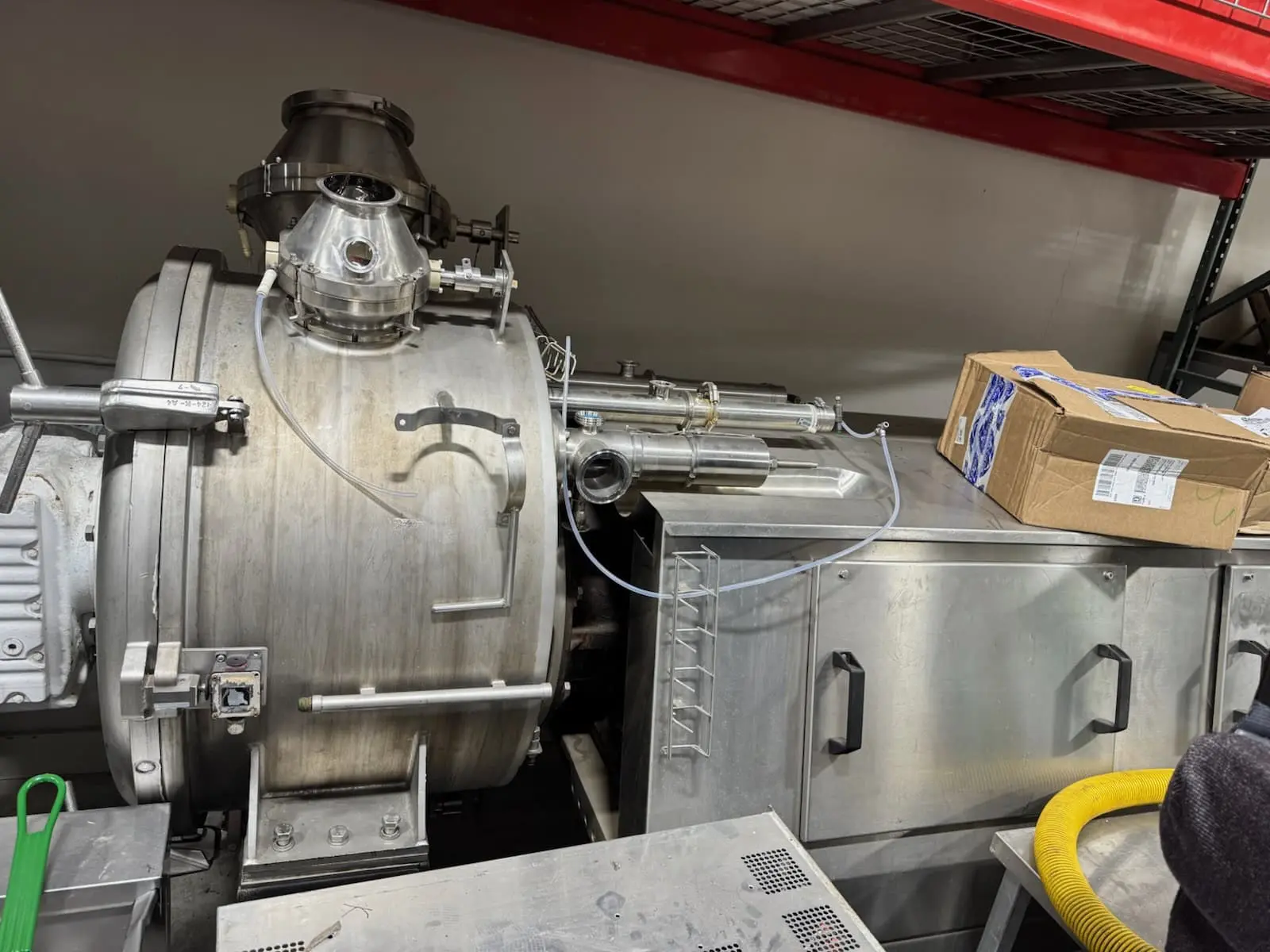

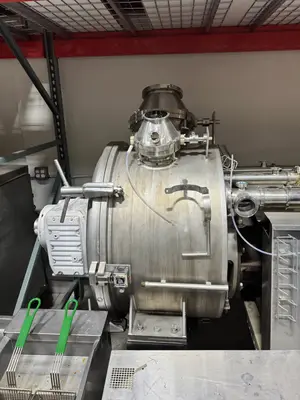

USED 1900 STEPHAN 300L

Net vessel volume: 300 L (batch size ~100–220 L)
Processes: mixing, cutting, dispersing, emulsifying, heating, cooling, deaerating
Heating: steam jacket and/or direct steam injection
Cooling: jacket cooling with chilled water options
Temperature capacity: up to ~95 °C
Motor power: ~75 kW
Energy consumption: ~50–58 kWh/h (process-dependent)
Steam requirement: ~130 kg/h
Dimensions: approx. 3.5 m × 2.8 m × 3.2 m (L×W×H)
Weight: ~4,400 kg
Vacuum deaeration option available
Discharge: bottom seat valve / slide valve
Control: PLC / HMI automation (varies by year and retrofit)
