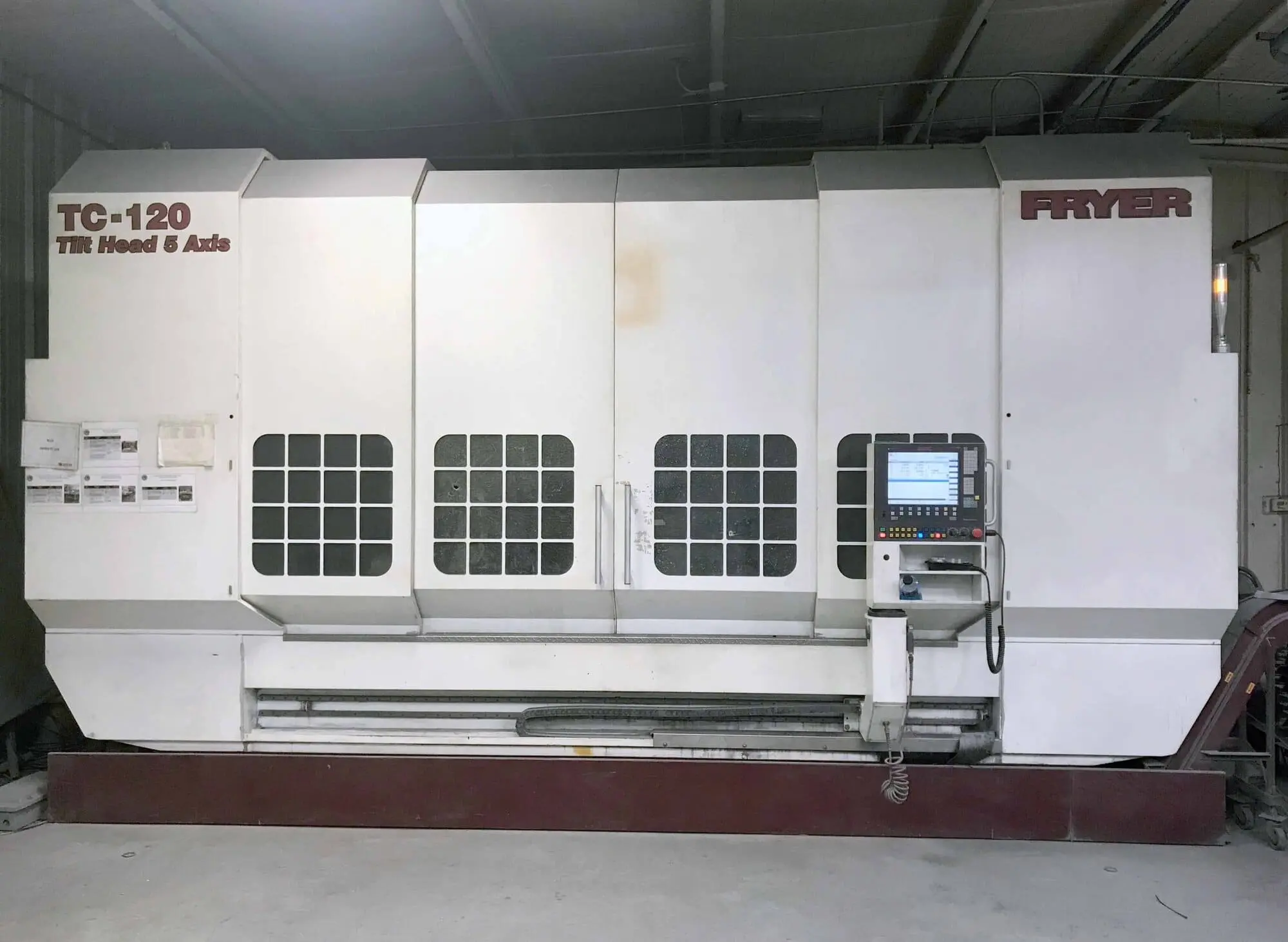

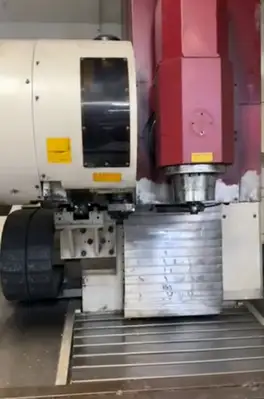

USED 2018 FRYER TC120

Table Size: 120″ x 32″
Table Load: 10,000 LBS
X Axis Travel: 120″
Y Axis Travel: 32″
Z Axis Travel: 28″
B Travel: +/- 100°
A Travel: +/- 360°
Spindle Taper: CAT 40 (Big Plus 40)
Spindle Motor: 40 HP
Spindle Speed: 18,000 RPM
Auto Tool Changer: 24 Stations
Machine Weight: 42,000 LBS
Equipped With:

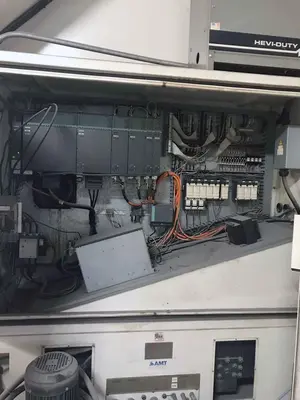

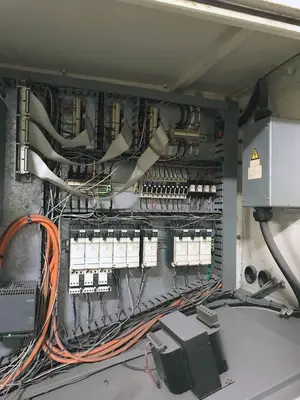

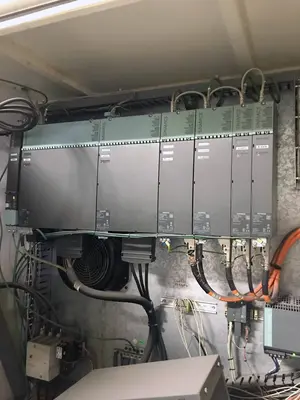

Siemens 840D SL CNC Control
Full 5-Axis Contouring
Through Spindle Coolant- 350 PSI

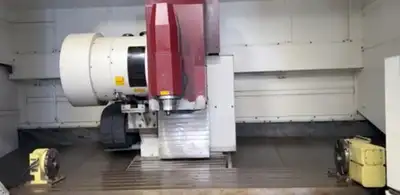

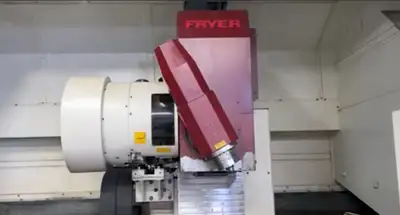

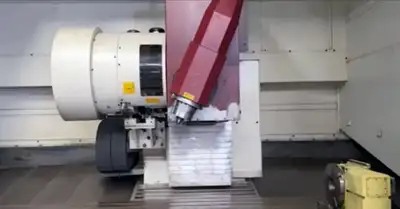

+/- 100 Degree Roller Cam Tilting Head

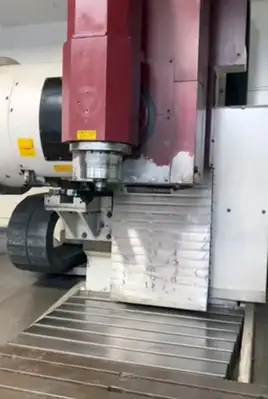

Big Plus 40 Spindle
40 HP High Torque Spindle
18,000 RPM Spindle
Fixed Table with 15,000 lbs Capacity
Nikken 10″ High Accuracy Rotary Table & Tailstock
Chip Conveyor
Chip Washdown System
All Available Manuals
