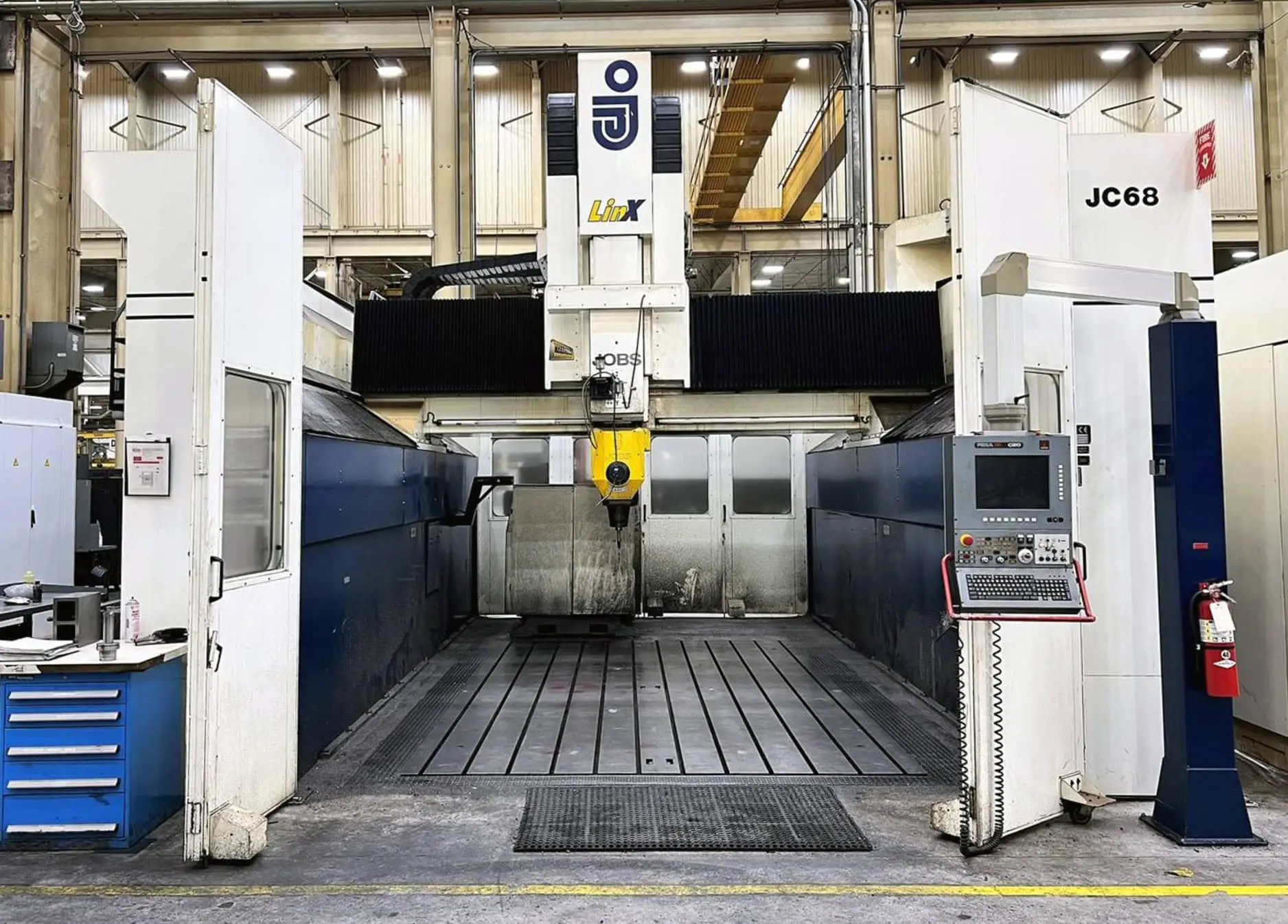

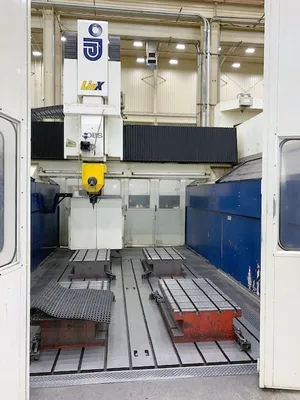

USED 2003 JOBS LINX/S

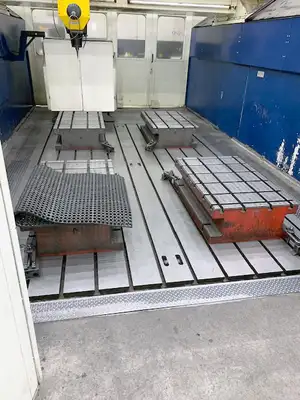

Table Size 197” x 118”
X-Axis Travel: 165” (4200mm)
Y-Axis Travel: 126” (3200mm)
Z-Axis Travel: 49” (1250mm)
Rotating Angle C-Axis: +/- 200 Deg
Rotating Angle-B Axis: +90/-100 Deg
Automatic Spindle Changer: 3 Spindle Head Positions
HSK 63 Head Spindle Speed: 24,000 RPM
HSK 100 Head Spindle Speed: 10,000 RPM
HSK 63 Spindle Motor: 53 HP
HSK 100 Spindle Motor: 45 HP
Automatic Tool Changer: 32 Positions
Power Requirements: 480V/60HZ/3 Ph
Approx Machine Weight: 103,705 lbs (47,080 kg)
Equipped With:

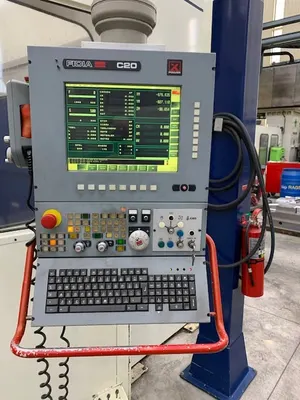

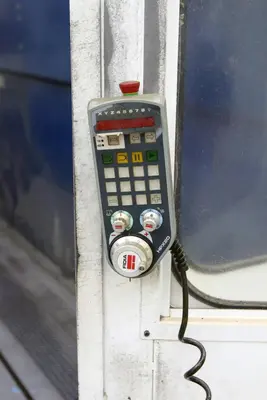

Fidia C20 CNC Control

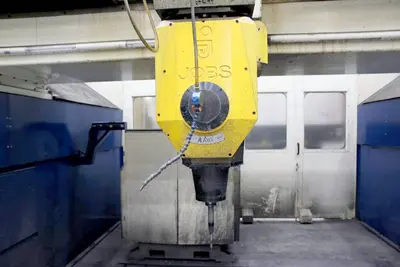

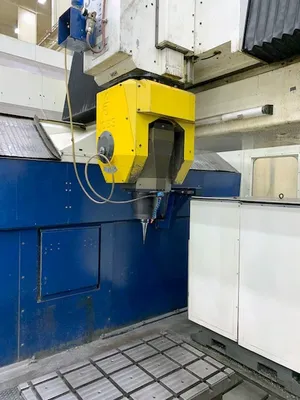

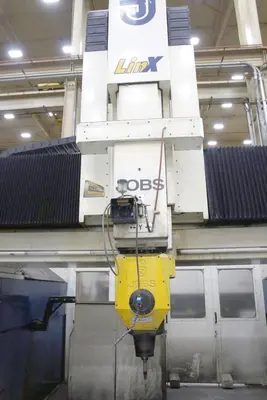

Universal Spindle Head
3 Position Spindle Head Changer
2x HSK 63 Spindle Heads
1x HSK 100 Spindle Head (New in Crate)
Through Spindle Coolant
10 HP Hydraulic Power Unit

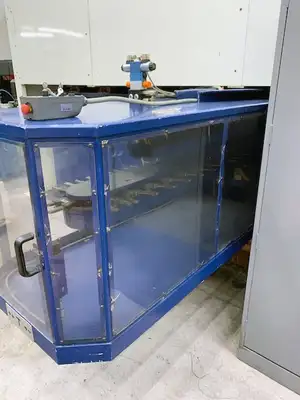

32 Position Automatic Tool Changer
(16x HSK 100 Positions + 16x HSK 63 Positions)

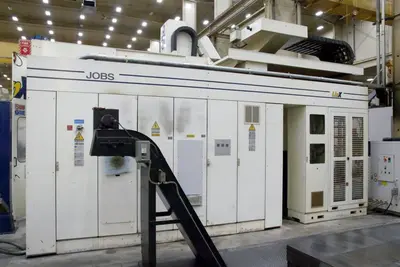

Chip Conveyor
Fidia HMS Calibration (Head Measuring System)- 2019 Upgrade
C-Axis Rebuilt- 2019

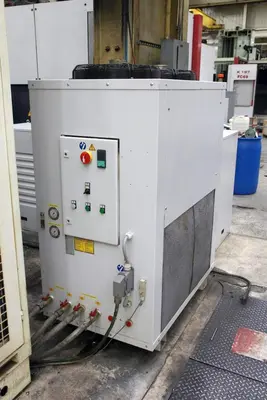

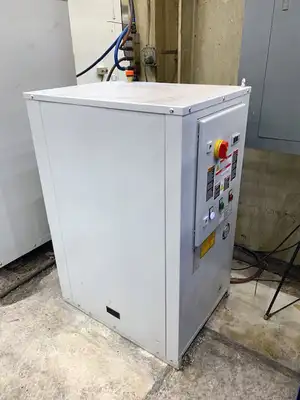

3x Chiller Units- New in 2019
All Available Manuals
