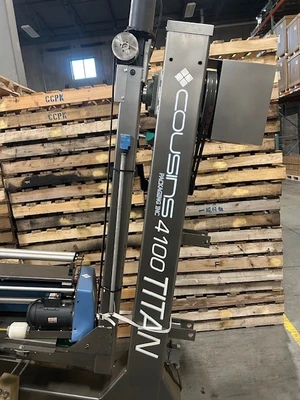

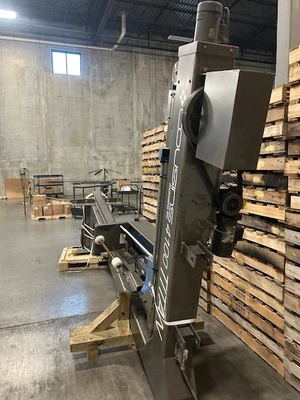

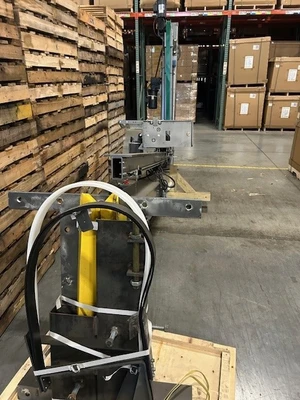

Used Cousins 4100T-FSR Free-Standing Rear Mount Semi-Automatic Pallet Stretch Wrapper:
PRODUCTION SPEED:
– 30 loads per hour throughout
– NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time
LOAD CAPACITY:
– Maximum load weight: Unlimited (floor supported)
– Maximum load size: 50″ W x 50″ L (71″ max. load diagonal) x 86″ H
ROTARY ARM:
– Double flange bearing support system
– Twin V-belt drive pulleys with belt tensioner
– 1-12 RPM rotational speed c/w soft start acceleration
– Final revolution deceleration and positive stop alignment
– 1/2 HP DC variable speed motor
FILM CARRIAGE ELEVATOR:
– 1/2 HP AC variable speed motor
– Direct flat belt drive system
– Maintenance free 12 point carriage guidance system

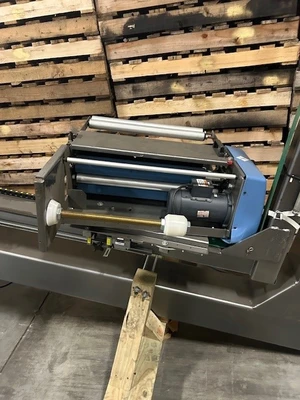

FILM DELIVERY SYSTEM:
– Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage
– Special Film Threading Device
– Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
– 1/2 HP AC variable speed motor
– Fully electronic dynamic dancer corner compensation
– 33% to 313% fixed stretch capability
– Pre-stretch ratio variable using easy sprocket change
– Rapid Thread ™ Safety Door with auto power cut-off switch
– Superior film-to-roller contact area
ELECTRICAL INPUT: 115 Volts 1 Phase 60 Hz 12 Amps
