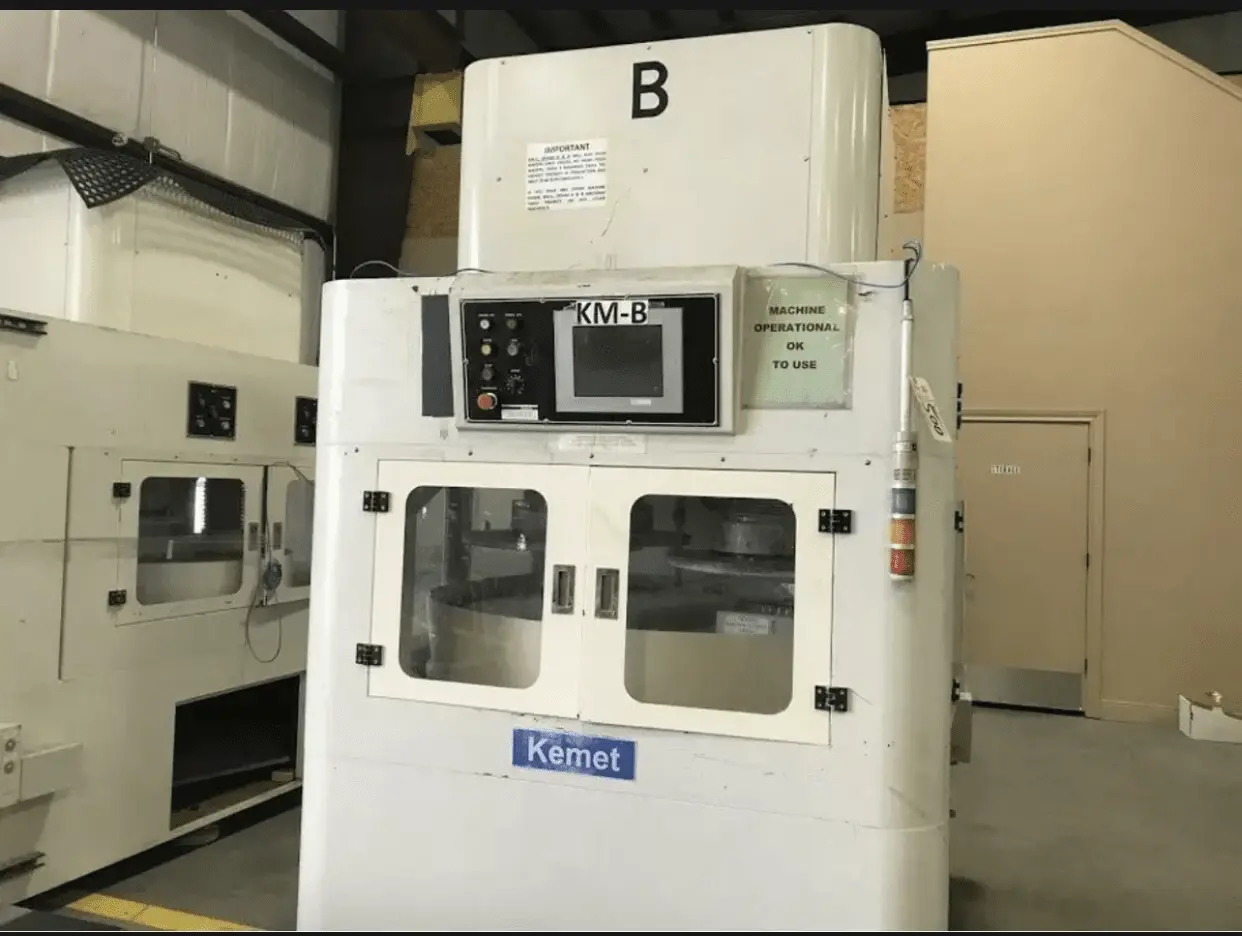

USED 2011 KEMET XJ-56 PRECISION LAPPING & POLISHING MACHINE
Specs
-Power Supply: 3 Phase, 480 V, Ac 50hz, 1 Phase, 24/220 v
-Required Floor Space: 1800 (w) X 2500 (l) X 2900 (h) Mm
-Weight: 6500kgs
-Protective Cover of Upper Part: Yes
-Platen: Diameter- 1420mm, Material- Stainless Steel 304, Drive Motor Horsepower- 40 Hp, Gearbox- 25:1, Motor Rpm- 0-70 Rpm, Temperature Control- Temperature Probe on Platen, Inverter for Speed Control- Variable, Chiller Routing for Platen- 30 L/ Min with Dia 25 Mm, Platen Floating During Run- Yes, Thickness of The Platen- 45mm
-Way of Loading Carrier: 2 Steps Carrier Alignment with Retainer
-Pressure Center (distribution)- Direct Pressure
-Usable Diameter of Work Piece Holding Plates- 546mm
-Possible Contact Pressure of Work Piece Holding Plates- 0 to 400 Kgs
-Pressure Range: 0 to 300 Kgs, with Individual Pressure Controls (4 Axis by 4 Regulators)
-Cylinder Bore- Diameter 130 Mm
-Cylinder Stroke Length- 220 Mm- 230 Mm
-Carrier Size: 5546mm
-Carrier Maintenance- N.A
-Material: Ceramics
-Rotation Mechanism: Positive Drive with Cw/ Ccw Functions, Individual Positive Driver in Each Pressure Head
