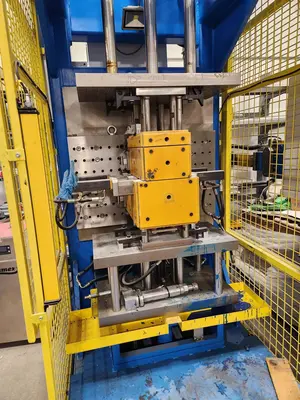

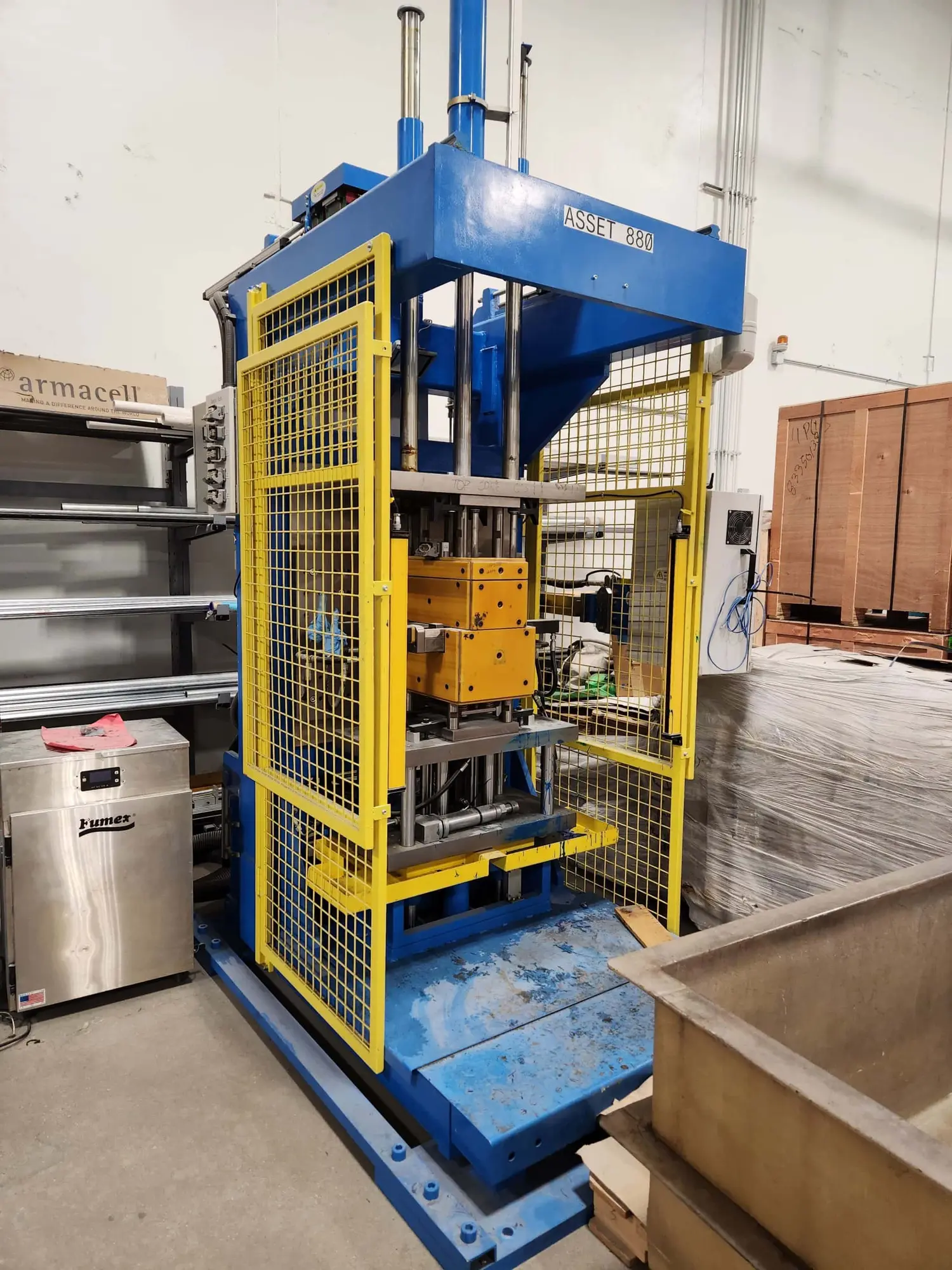

USED 2021 XU SHI HAG E 10 Z

Vertical Clamping Force: 100kn.
Top Core:
Top Core Carriage on Top of the Machine Frame.
Top Core Cylinder Stroke: 950mm, Linear Sensor with Power-Off Memory Function.
Distance Between the Core-Pulling Plate and The Equipment Center: Min.. 250mm,and Max. 1200mm.
Top Horizontal Cylinder: Stroke 630mm.
Top Core Plate: 700×450mm.
Bottom Core:
Bottom Core Pulling Plate.
Bottom Core Cylinder: Stroke 350mm, Piston Diameter 80mm.
The Distance Between the Core-Pulling Plate And The Equipment Center: Min. 310mm, And Max. 660mm.
Bottom Horizontal Cylinder: Stroke 260mm. Linear Sensor with
Bottom Core Plate: 700×450mm.
Heating Plate:
Heating Plate: 1000 X 600 Mm (Width X Height).
Using Heat Insulation And Pad.
480v Heating Rod.
Pt100 Sensor.
