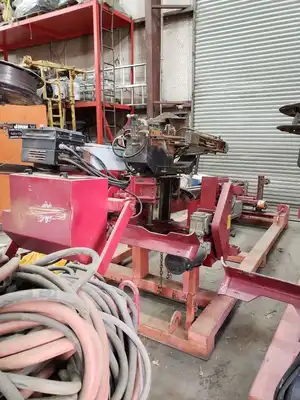

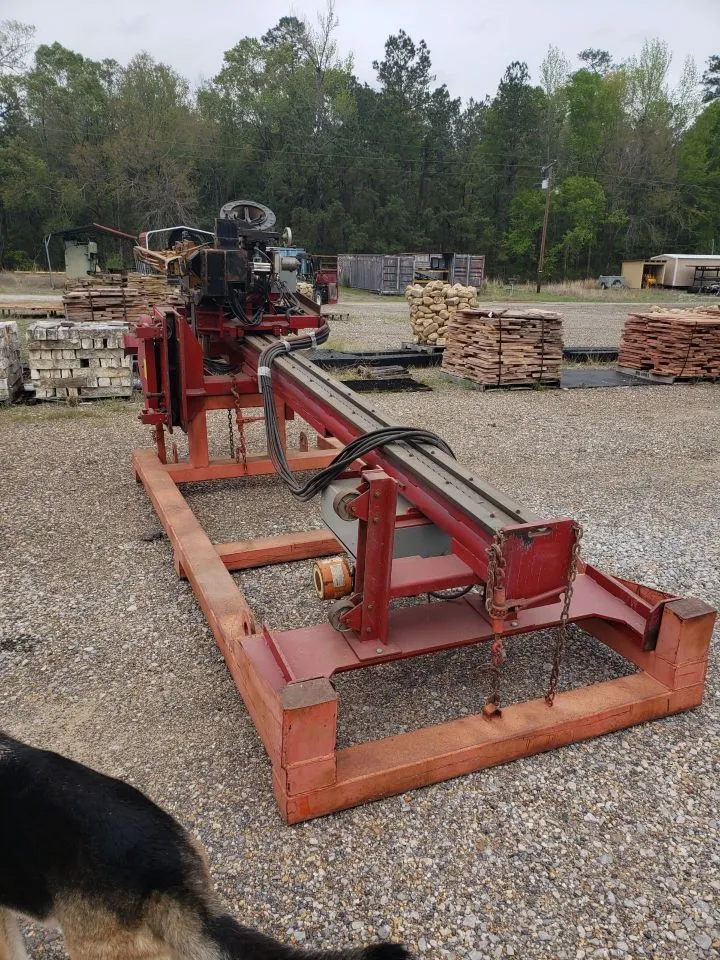

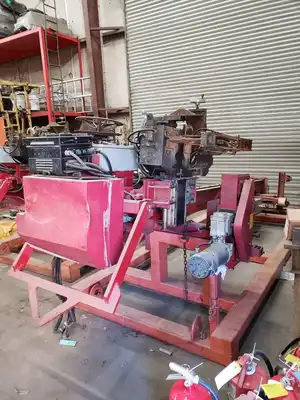

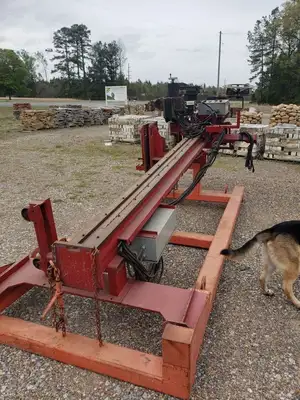

USED 2007 KOIKE ARONSON VUPNA3

Welding Capacity:
Pipe Diameter Range: 4″ – 20″ (102 – 508mm)
Pipe Length: Up to 12′ (3.6m)
Welding Position: Vertical up
Welding Process: Submerged Arc Welding (SAW)
Welding Power Source:
Input Voltage: 460V, 3-phase
Rated Output Current: 1500 amps
Duty Cycle: 100% at 1000 amps, 60% at 1500 amps
Welding Head:
Travel Speed: 3 – 30 inches per minute (76 – 762 mm/min)
Torch Oscillation: 1/8″ (3mm) stroke, adjustable frequency
Wire Size: 3/32″ – 5/32″ (2.4 – 4mm)
Welding Control:
PLC-based control system
Touch-screen interface
Programmable welding parameters
Welding process monitoring and data logging
Machine Features:
Column and boom type structure
Motorized travel and torch height adjustment
Automatic flux feeding system
Water cooling system for welding head and power source
Safety features such as emergency stop and overload protection
