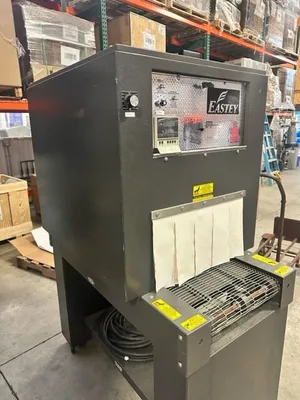

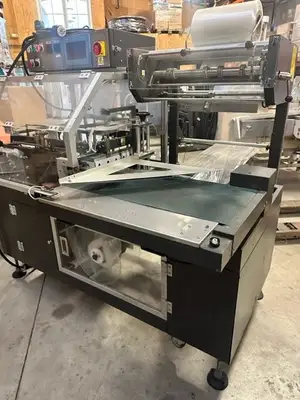

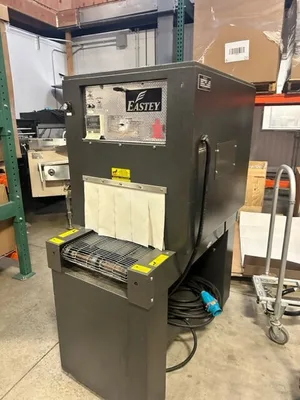

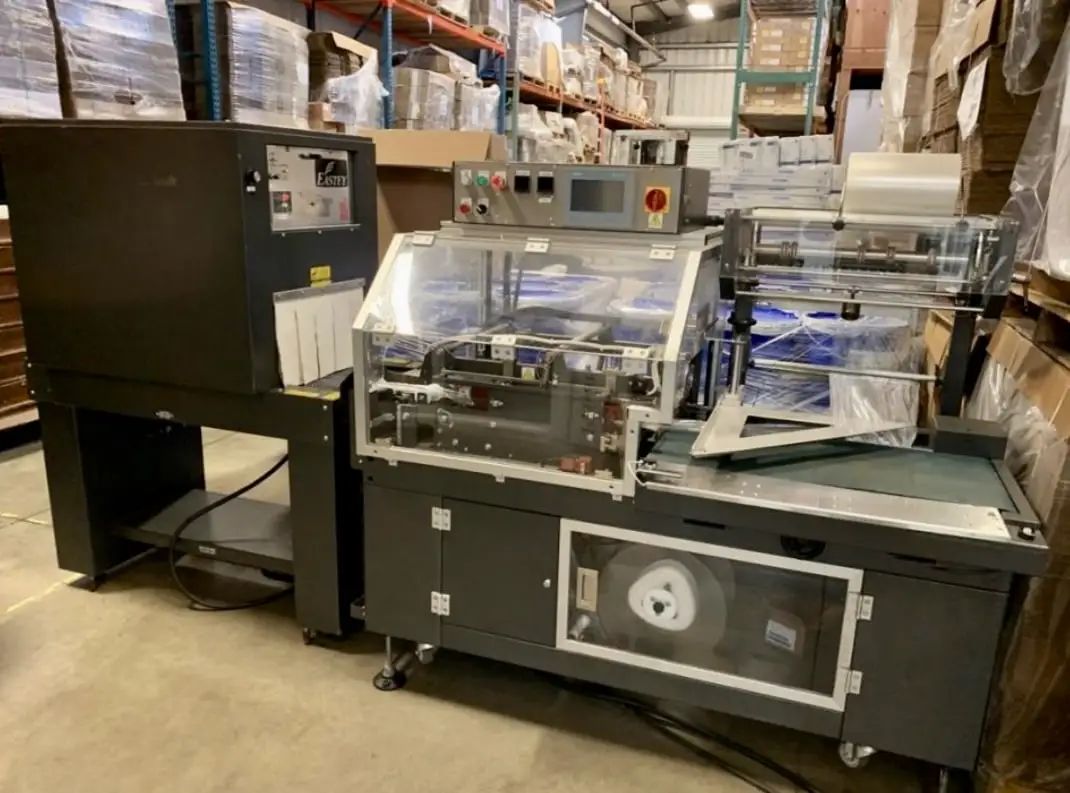

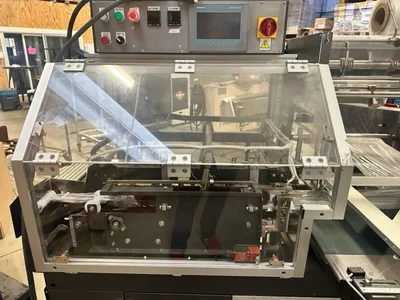

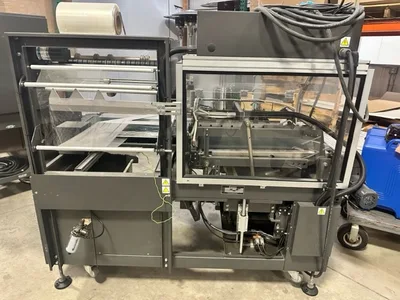

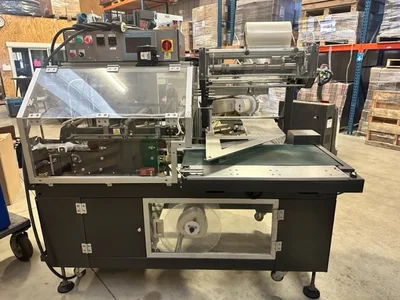

USED 2016 EASTEY VSA1721-TKV1 AND ET1610-36-MBV1

• Designed to seal most polyolefin, polyethylene, and PVC shrink films
• Normal speed infeed and outfeed conveyors
• High speed with product indexing
• Motorized seal height adjustment for various product sizes
• Seal head equipped with pneumatic air cylinder for automatic sealing
• Hot knife seal bar for consistent and clean seal
• Consistent pressure across seal bar
• Automatic cycle timing with adjustable dwell time

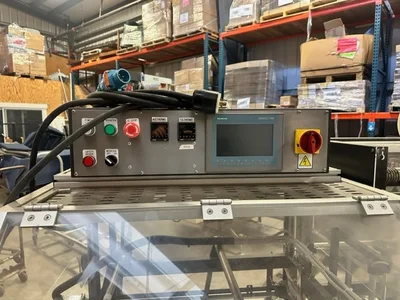

• HMI controller with simple menus for easy operation
• Film tracking wheels keep film in place
• Multiple pin perforator provides precise air evacuation
• Heavy duty casters for transportation within plant
• Leveling legs provide sturdy base once in place
• VSA1721 features a 17”W x 21”L seal area
•Scrap unwind automatically wraps up the scrap film left from the sealer
• VSA1721 maximum film width up to 22”
• Maximum film roll OD up to 12”
• 80 psi
• Up to 25 cycles a minute
Seal Dimensions (Sealer): 17″ Front, 21″ Side
Chamber Dimensions (Heat Tunnel): 16″x10″x36″
Roller Width (Heat Tunnel): 16″
Conveyor Length (Heat Tunnel): 48″
Machine Dimensions: Sealer 45″x58″x72″, Shrink Tunnel 28.5″x64″x49″
Weight: Sealer 1400 Lbs., Heat Tunnel 1090 Lbs.
