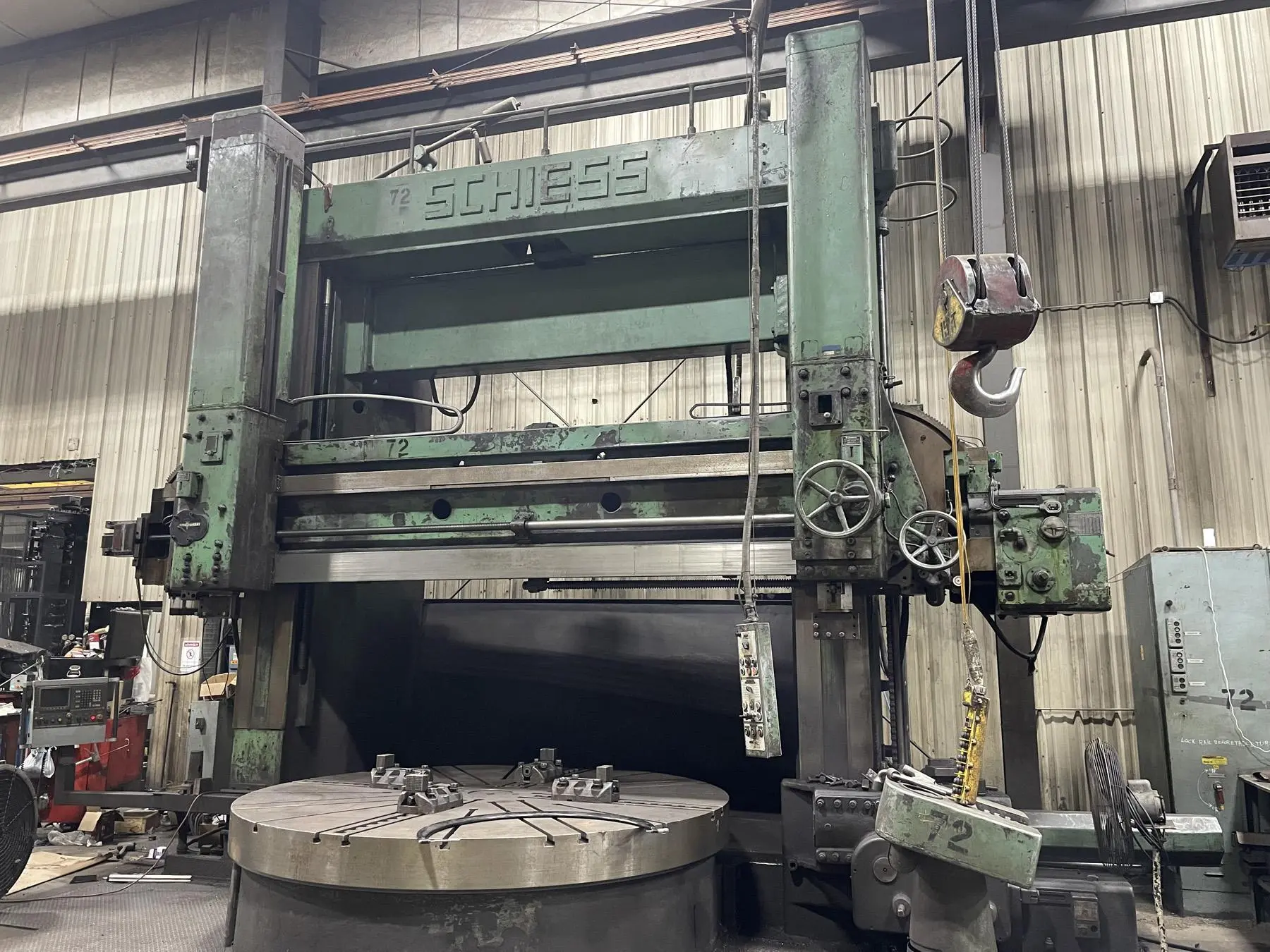

USED SCHIESS 120 VBM

120" Schiess Vertical Boring Mill, 120" Table, 153.5" Swing, 98" Under the Rail, 100 HP, 50 RPM, (2) Ram heads, Left Hand Ram head is CNC

Table Diameter...........118.5"
Max. Swing...............153.5"
Height Under Rail........98"
Table Drive..............100 HP
Table Speeds (20)........5 - 50 RPM
Number of Heads..........2
Ram Head Travel..........59"

Dynapath Delta CNC Control on Left Ram
Pendant Control
120" 4-Jaw Table with Top Jaws
(1) Swivel Ram Head
(1) Side Head (Needs Gib to Operate)
118.5" Table

**MACHINE REQUIRES PIT FOR TAIL BEARING**
**OWNER BOUGHT MACHINE IN 1983**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
