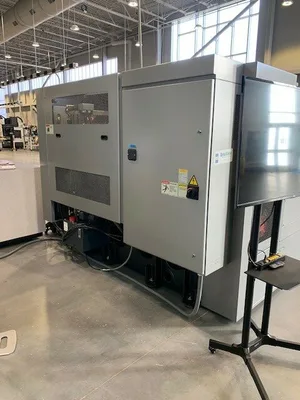

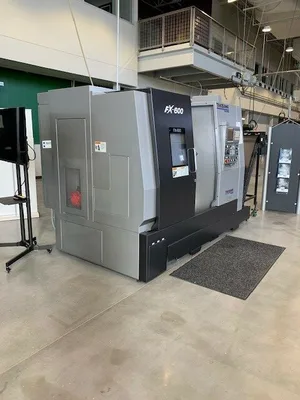

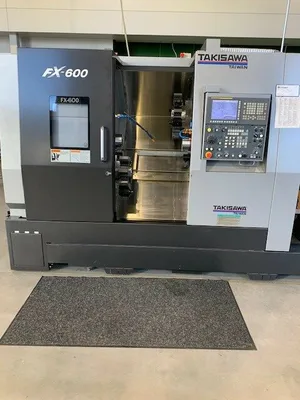

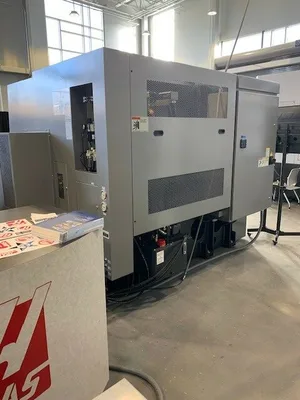

USED 2017 TAKISAWA FX-600

Turning Diameter – 8.6″
Max Turning Diameter 11.8″
Max Turning Length 20″
X1/X2 Axis Travel mm (in) 180/180 (7.1/7.1)
Z1/Z2 Axis Travel mm (in) 540/540 (21.2/21.2)
Y Axis Travel mm (in) ±35 (±1.4)
B Axis Travel – 24.4″
Spindle Speed rpm 6000
Chuck Size in 6″
Spindle Nose Ø140 Flat
Through Hole Dia. 2.2″
Max Bar Capacity — 1.65″
Spindle Speed rpm 6000
Chuck Size in 6″
Through Hole Dia. mm (in) 56 (2.2)
Bearing Dia. mm (in) 80 (3.1)
Max Bar Capacity mm (in) 42 (1.65)
Number of Turrets 2
Number of Tool Stations 12+12
Boring Bar Shank Dia. mm (in) 20 (.75)
Milling Speed rpm 6000
Milling Shank Dia. mm (in) Ø1~Ø13 (Ø0.39~Ø0.5)
Spindle Drive Motor (15/10)
Sub Spindle Drive Motor (15/10)
Milling Motor kW (HP) 2.2 (3)
Turret Index Motor kW (HP) 1.2 (1.6)
Height mm (in) 2200 (86.6)
Length mm (in) 2740 (107.8)
Width mm (in) 2022 (79.6)
Weight kg (lb) 8000 (17636)
Equipped with:

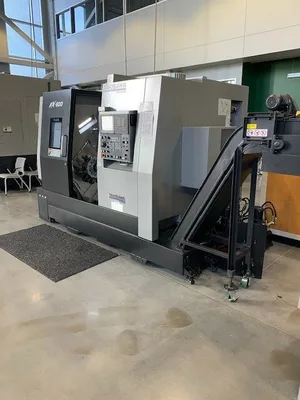

Chip Conveyor
Barfeed Interface
Renishaw Toolsetter
Chuck Air Blow
Extra live tool holder X axis
Extra live tool holder z axis
