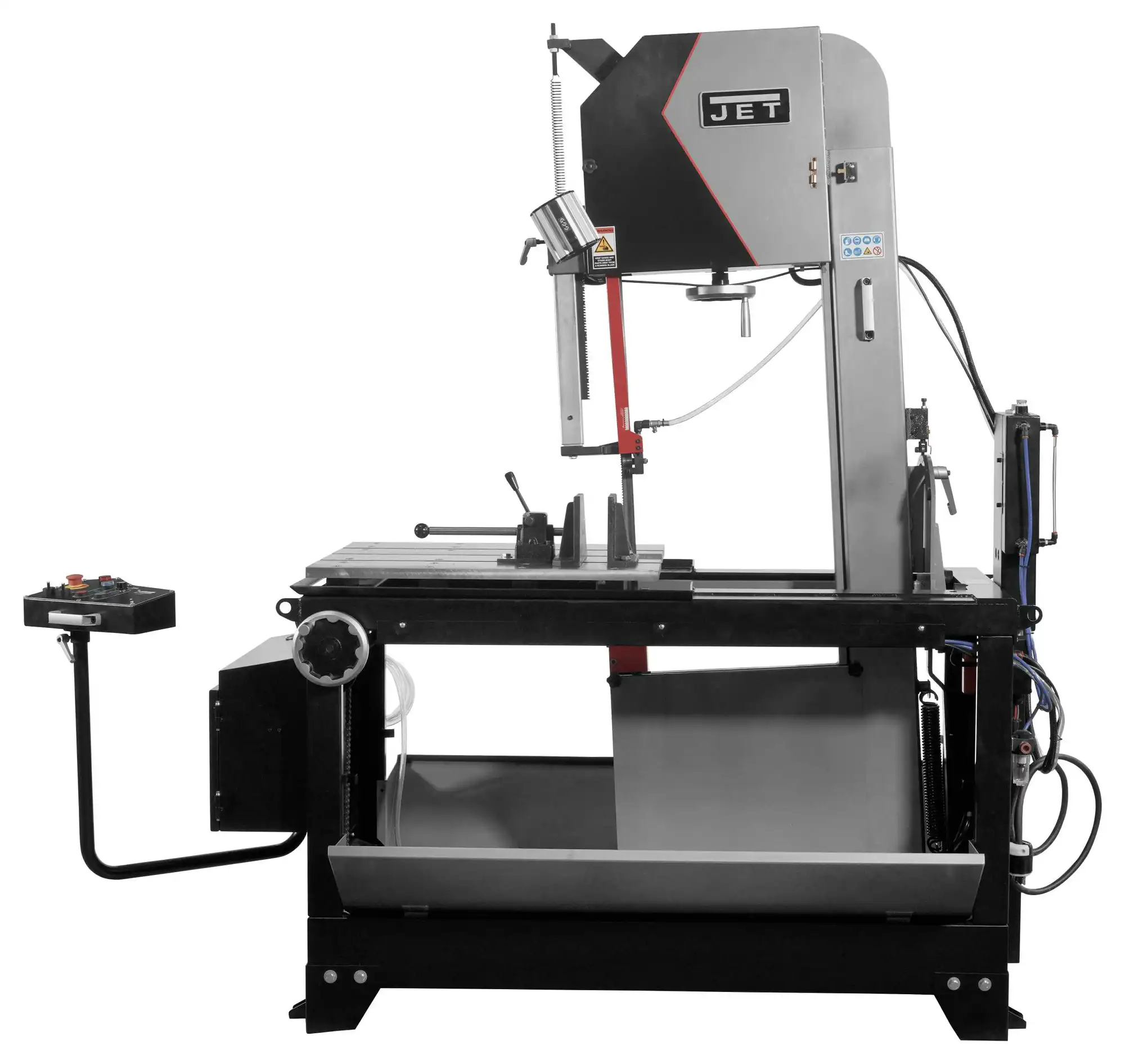

USED 2023 JET EVS ELITE EVTBS-16"

Capacity: 16” x 16“

Blade Size (In.): 1-1/16 x 0.035 x 168-1/2
Blade Guide: Carbide & Roller
Blade Length (In.): 168-1/2
Blade Speed (RPM): 76-430 Variable
Blade Speeds (SFPM): 76-430
Blade Thickness: 0.035
Blade Width (In.): 0.035
Coolant Pump Motor: 32W
Drive: EVS
Drive Type: Inverter Driven
Height (In.): 90.5
Input Power: 460V, 3Ph
Maximum Vise Opening (In.): 17-1/2
Miter Angle Range (Deg.): 45 – 90 – 45
Model Number: EVTBS16V-460
Motor (HP): 2 HP, 460V, 3Ph
Overall Dimensions (L x W x H) (In.): 94-1/2 x49-1/8 x 90-1/2
Prop 65: Cancer
Rectangle at 45 Degrees (In.): 13-1/4 x 16
Round Stock Capacity (Max.) (In.): 16
Shipping Dimensions (L x W x H) (In.): 94-1/2 x 49-1/8 x 90-1/2
Speeds: Variable
Table Length (In.): 29-1/2
Table Size (In.): 29-1/2 x 14-3/16
Table T-Slot (In.): 3/4
Table Width (In.): 14-3/16
Throat Depth (In.): 16
Weight (Lbs.): 1408
Work Height (In.): 39-3/8
Speed Control: Electronic Variable Speed
Reservoir (Gal.): 60 Litter
Blade Wheel Diameter (In.): 18.11
Round Capacity at 45° Right (in.): 13-1/4
Rectangle Capacity at 45° Left (in.) (HxW) :11-1/2 x 11-1/2
Rectangle Capacity at 45° Right (in.)(HxW): 13-1/4 x 13-1/4
Rectangle Capacity at 90° (in.): (HxW) 20 x 16
Round Capacity at 45° Left (in.): 11-1/2
Round Capacity at 90°(in.): 16
Square Capacity at 45° Left (in.) (H x W): 11-1/2 x 11-1/2
Square Capacity at 45° Right (in.) (HxW): 13-1/4 x 13-1/4
Square Capacity at 90° (in.) (HxW): 16 x 16
*** Warranty 3 years PARTS AND LABOR from date of purchase ***
