USED 2023 FANUC R-350IA

Equipment Overview

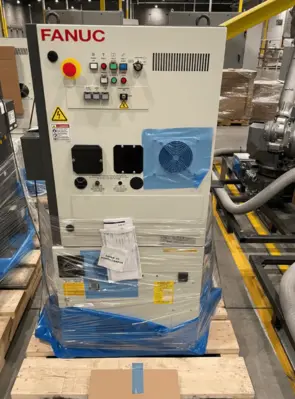

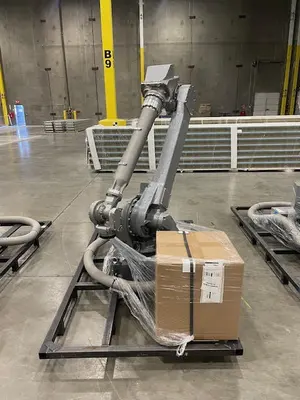

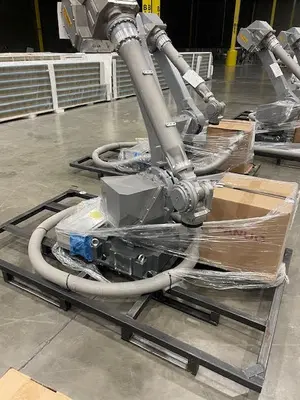

The FANUC P-350iA/45 is an industrial paint robot engineered for hazardous, Class 1 Division 1 environments. With a 45 kg payload and a 2.6-meter reach, it supports multi-gun, rotary atomizer, sealing, and surface prep operations. This unit is unused and shipped with an R-30iB controller and all original documentation.
Key Features and Specifications
-Payload Capacity: 45 kg
Max. Reach: 2606 mm
-Axes: 6
-Repeatability: ±0.1 mm
-Mechanical Weight: 590 kg
-Motion Range (°):
-J1: 170 | J2: 150 | J3: 1295 mm reach | J4: 440 | J5: 800 | J6: 250
-Max Speed (°/s):
-J1–J3: 180–250 | J4–J6: 250–300
-Tooling Load Specs:
-Moment at Wrist: J4/J5 = 206 Nm, J6 = 127 Nm
-Inertia: J4/J5 = 28 kg·m², J6 = 20 kg·m²
-Power Input: 200–230 VAC | ±10–15% | 50–60 Hz
-Control Software: Compatible with PaintTool, HandlingTool, SpotTool, Dispense Plug-In
-Certifications: FM & ATEX Approved
-Construction & Mounting:
-Floor/ceiling/angled mounting options
-Left-/right-hand symmetry configuration
-Sealed for use in explosive atmospheres
-Application Types Supported:
-Automotive & aerospace paint lines
-Surface cleaning/prep
-Sealant dispensing
-Material handling or inspection
