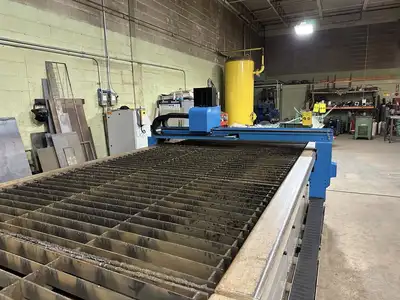

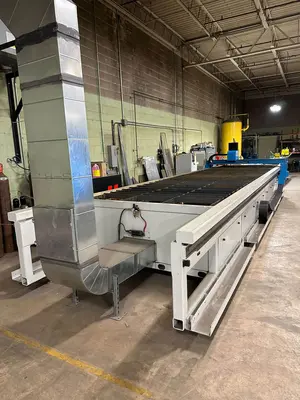

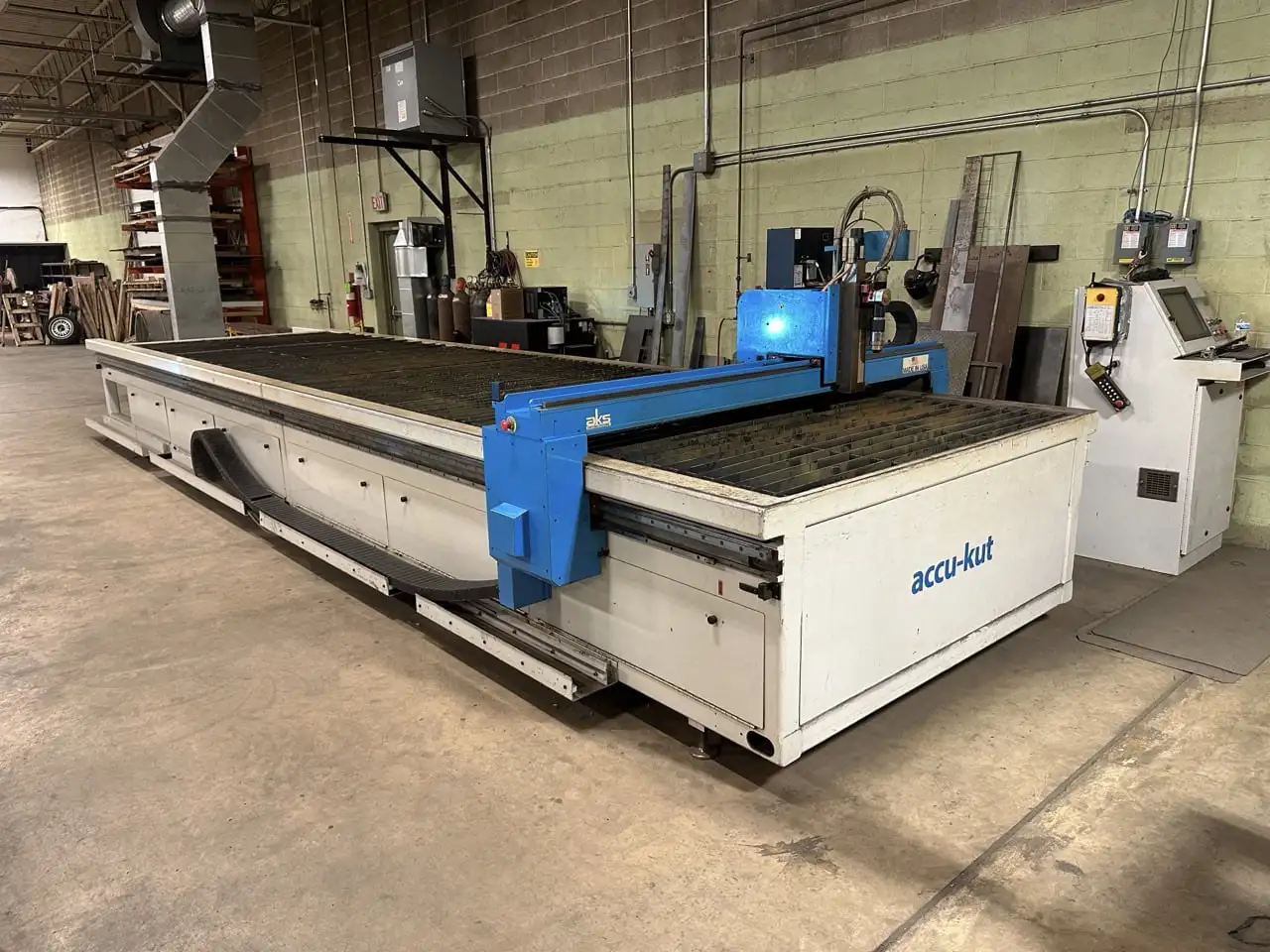

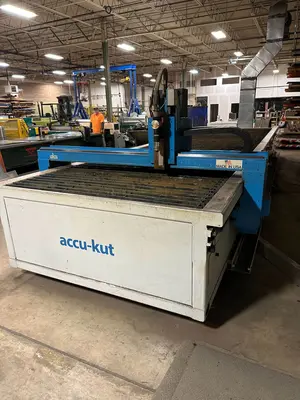

USED 2016 AKS P0624-585 ACCU-KUT CNC PLASMA TABLE - HPR260XD
Overview
Specifications
Capacity: 6‘ x 24‘
Controller voltage: 208-230vac, 3-phase

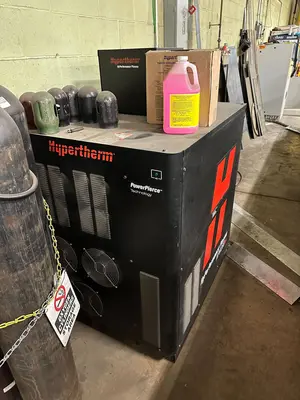

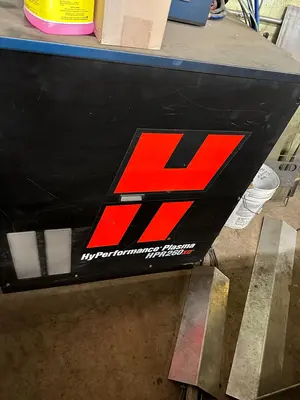

HPR260xd voltage: 480 vac, 3-phase
Electrical drawing AK2000
Controller: MicroEdgepro, 090174, 4-axis Servos 3
X, Y, and DG EL000536
Mild steel cut capacity:
Dross free 32 mm (1-1/4″)
Production pierce: 38 mm (1-1/2″)
Maximum cutting capacity: 64 mm (2-1/2″)
Stainless steel cut capacity: Production pierce 32 mm (1-1/4″)
Maximum cutting capacity: 50 mm (2″)
Aluminum cut capacity:
Production pierce: 25 mm (1″)
Maximum cutting capacity: 50 mm (2″)
Speed: (Mild steel) Book specification at highest output current 12 mm (1/2″) 3850 mm/m (145 ipm)
Cut angle: ISO 9013 range* 2-4
Weldability: Ready to weld
Equipped With:
Gas regulators and hoses (N2,O2, Air, H35)
Sensor THC, Magnetic Break Away
Sercos 3 Controller, AKD servo drives
Laser Pointer

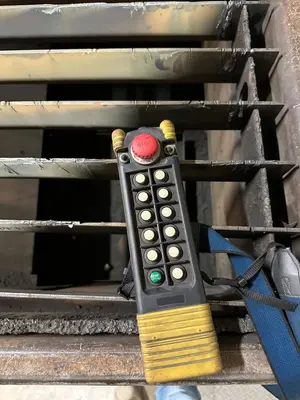

Remote Control
Pronest 2017 Software
