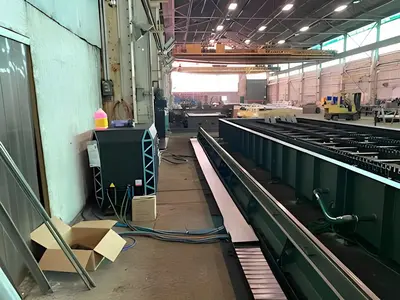

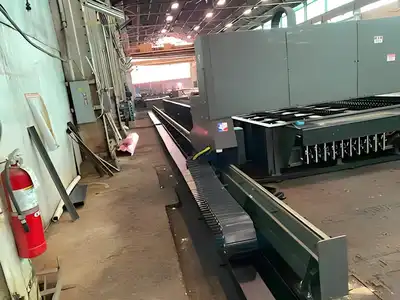

USED 2020 LONE STAR COMMANDER 3

Capacity: 10‘ x 60‘

This 2020 Lone Star Commander III is a heavy-duty multi-process CNC cutting system offering a 10′ x 60′ cutting envelope with integrated high-definition plasma, oxy-fuel cutting, pipe cutting, and steel beam drilling capabilities, making it an ideal solution for structural steel fabricators, steel service centers, pipe spool shops, and heavy manufacturing operations requiring a versatile, large-format CNC cutting platform. Equipped with a Hypertherm XPR170 HyDefinition plasma system, Hypertherm Edge Connect TC CNC control, ProNest nesting software, and a MAX 100CO drill package, this machine represents a rare opportunity to acquire a near-new, fully-equipped structural cutting system at a fraction of new pricing.
Specifications
Make: Lone Star
Model: Commander III
Year: 2020
Table Size: 10′ x 60′
Effective Cutting Width: 10′ 11″
Distance Between H-Beams (Inside): 14′ 11″
Max Thickness – Mild Steel (Argon Assist): 1-9/16″ (40mm)
Max Thickness – Mild Steel (Standard Air): 1-3/8″ (35mm)
Max Thickness – Stainless Steel: 7/8″ (22mm)
Max Thickness – Aluminum: 1″ (25mm)
Rapid Traverse Speed: 1,500 IPM
Positioning Accuracy: ±0.007″
Repeatability: ±0.002″
Max Plasma Stations: 3
Max Oxy-Fuel / Other Tools: 5
Table Type: Single Zone Water Table, 60′ Crane Rail
Voltage: 110V/20A, 120V/20A, 230V/15A
Equipped With
Hypertherm XPR170 HyDefinition Plasma System

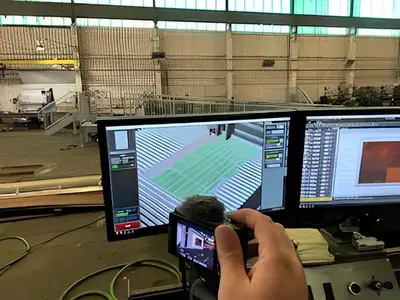

Hypertherm Edge Connect TC CNC Control & Software
Hypertherm Sensor Torch w/ Lifter
ProNest Plasma Nesting Package
Manual Bevel Head for Plasma Station
MAX 100CO Drill Package

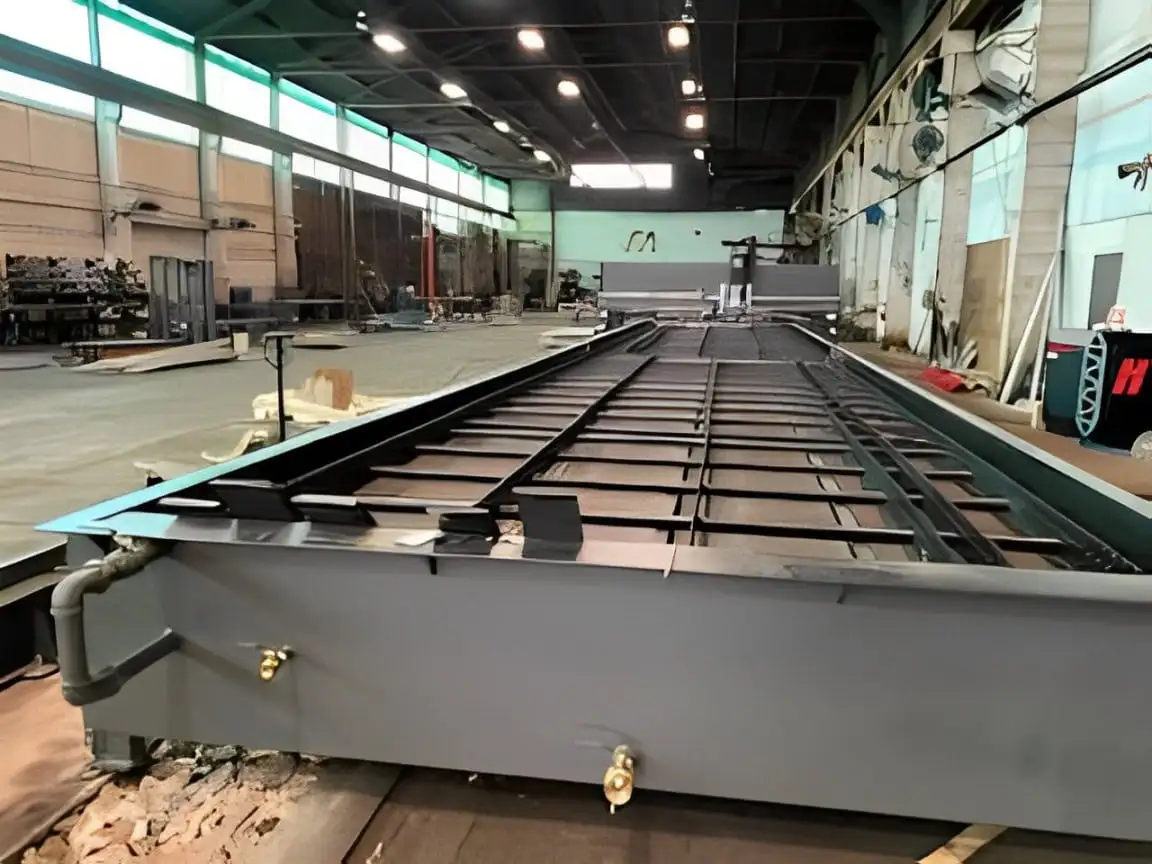

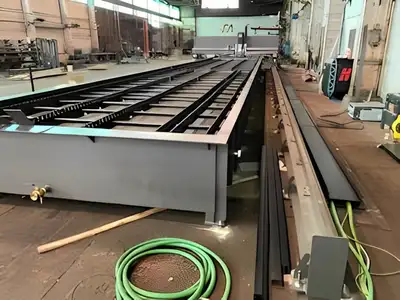

Single Zone Water Table
60′ Crane Rail
Pneumatic Braking System (holds machine during drilling process)
35mm HiWin Linear Bearings & Rails on All Axes

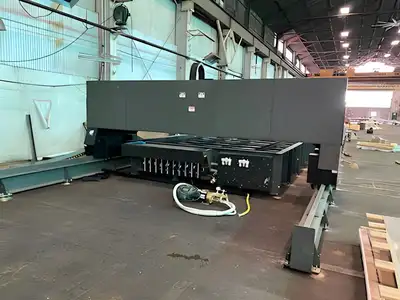

Upgraded Gantry
All specifications are assumed to be correct but must be verified by the purchasing entity. All machinery is sold as-is, where-is, with no warranties expressed or implied. Buyers are encouraged to inspect prior to purchase.
