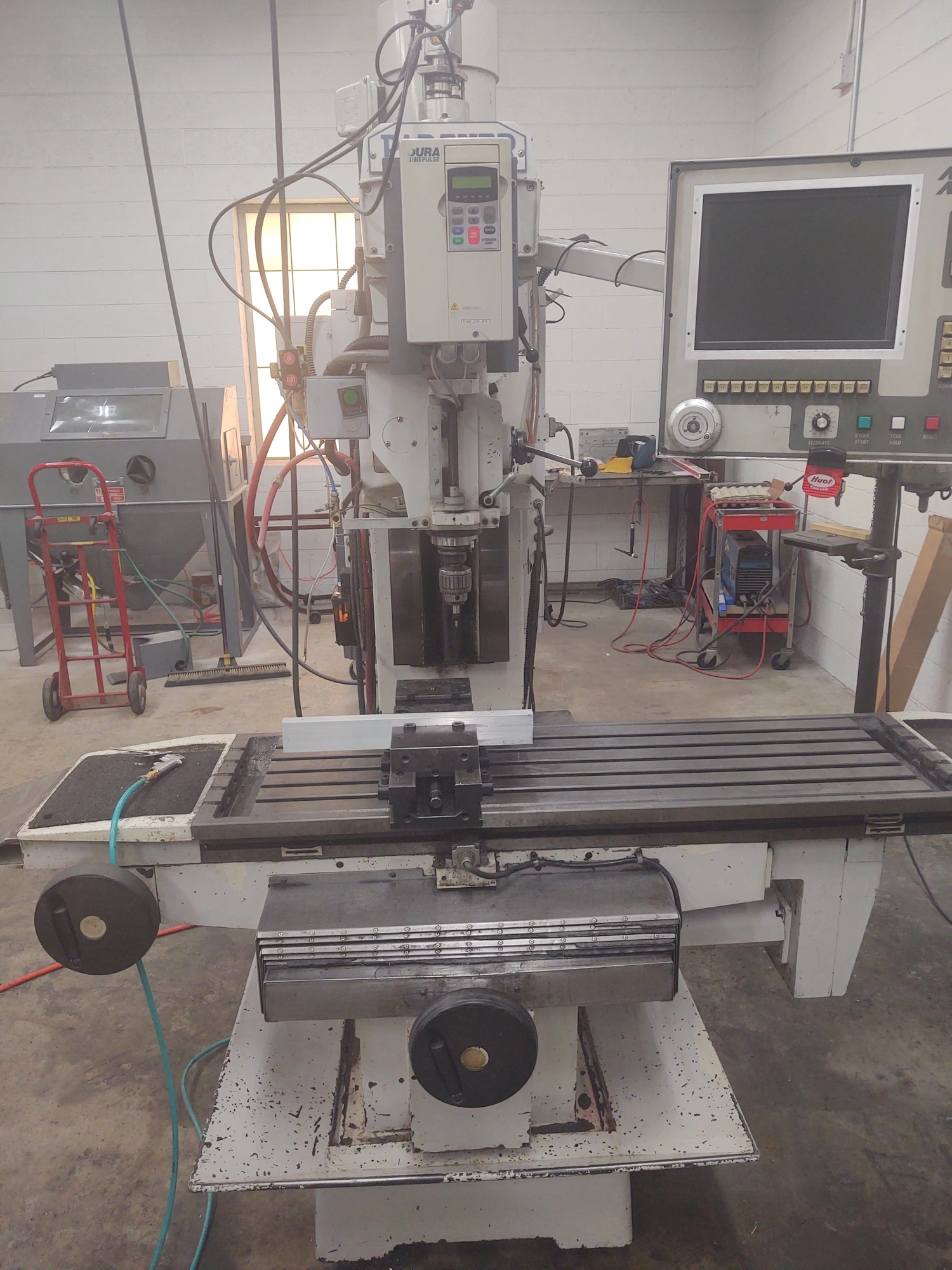

1995 Milltronics Partner MB-20A CNC Vertical Machining Center
| Table-W | 16" | 406.4 mm |
| Table-L | 54" | 1,371.6 mm |
| Travel-Long | 40" | 1,016 mm |
| Travel-Cross | 20" | 508 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Taper | CAT-40 | CAT-40 |
| Control | CNC (Centurion) | CNC (Centurion) |
| Dimensions | 129" x 78" | 129" x 78" |
| Weight | 7000 LBS | 7000 LBS |
Table Size............................54" X 16"
X-Travel..............................40"
Y-Travel..............................20"
Z-Travel..............................24"
Quill Travel..........................6"
Spindle Speeds........................60 - 4,000 RPM
Spindle Taper.........................CAT-40
Spindle Motor.........................10 / 7.5 HP
Spindle Nose to Table Top.............3.75" - 27.75"
Rapid Traverse Rates (X & Y / Z)......500 / 300 IPM
Quill Diameter........................4.125"
Machine Dimensions (L x W)............129" x 78"
Weight................................7,000 lbs
Centurion CNC Control
CAT-40 Spindle
Conversational & G-Code Programming
Heavy Duty Box Way Construction
**ORANGE VICE NOT INCLUDED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
