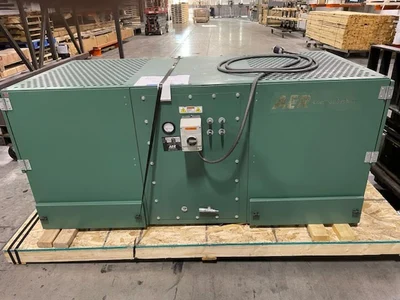

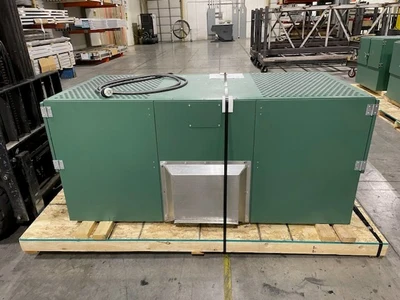

USED 2020 AER APB-4276

Nominal CFM: 5050 CFM @ 4″ w.g. 250 FPM Face Velocity
480V 3PH 8.4A 60hz
Table Top Dimensions: 42” x 72”
Total Filter Area: 960 sq ft
Motor: 7.5HP
Compressed Air Requirements: 90-105 psi, dry
Dimensions: 76.75″ x 43″ x 62″
Weight: 410 lbs
Certfications: UL and CSA
Airflow ranges from 2500 to 5050 CFM depending on table top size and motor horsepower.
99% filter efficiency at 0.5 microns particulate size.

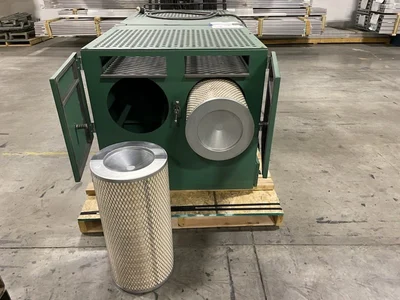

Sealed doors with tool-less entry for cartridge change.
Heavy duty galvanized grating table top and rear wall hinged sides are standard.
Direct drive backward inclined airfoil non-overloading fan.
Manual push button filter cleaning system.
Mini-helic filter change-out gauge.
High capacity dust drawers.
11 and 14 gauge heavy duty metal construction.
Kelly Green industrial textured powder coat finish.
Manual motor starter.
